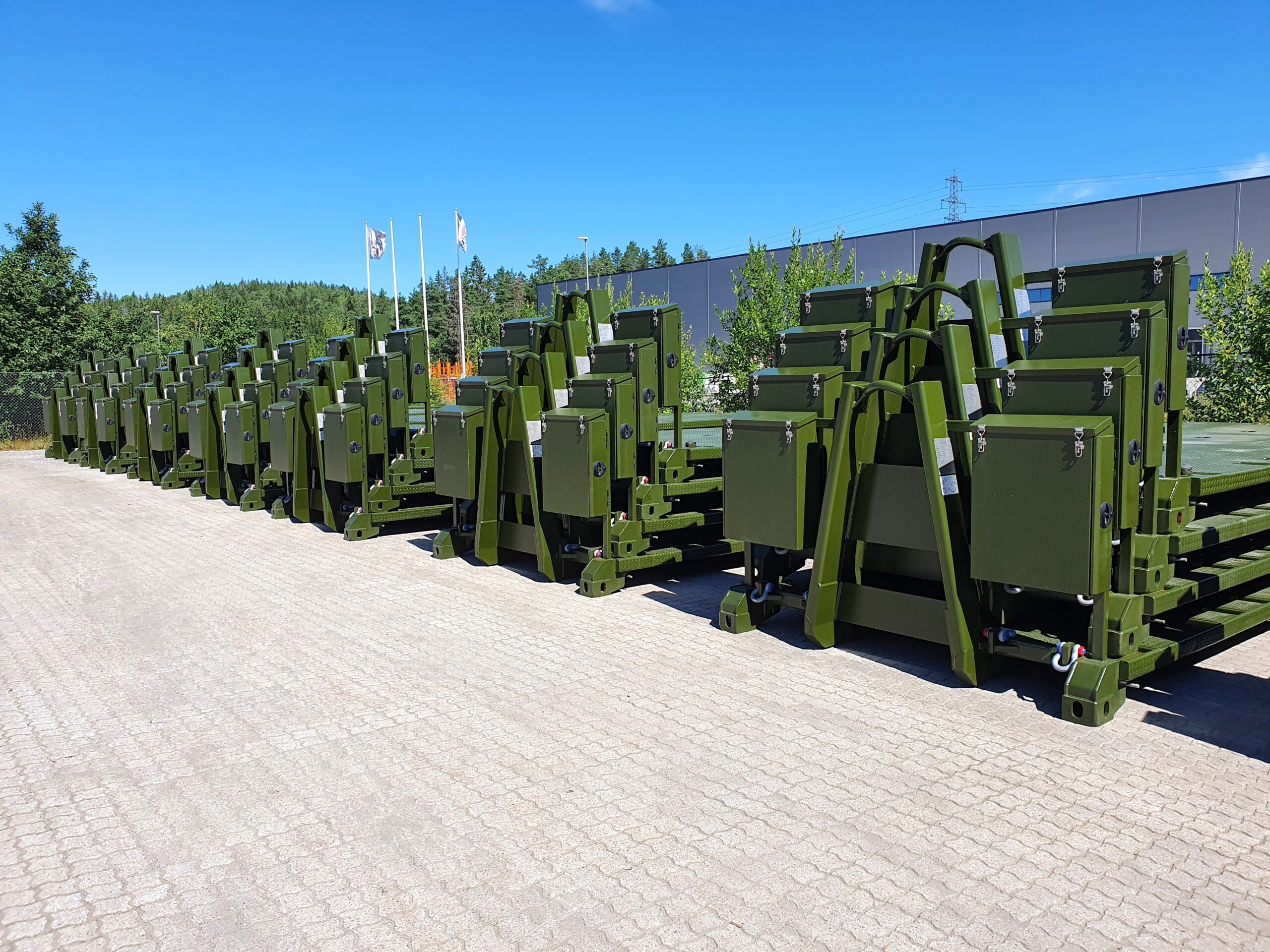

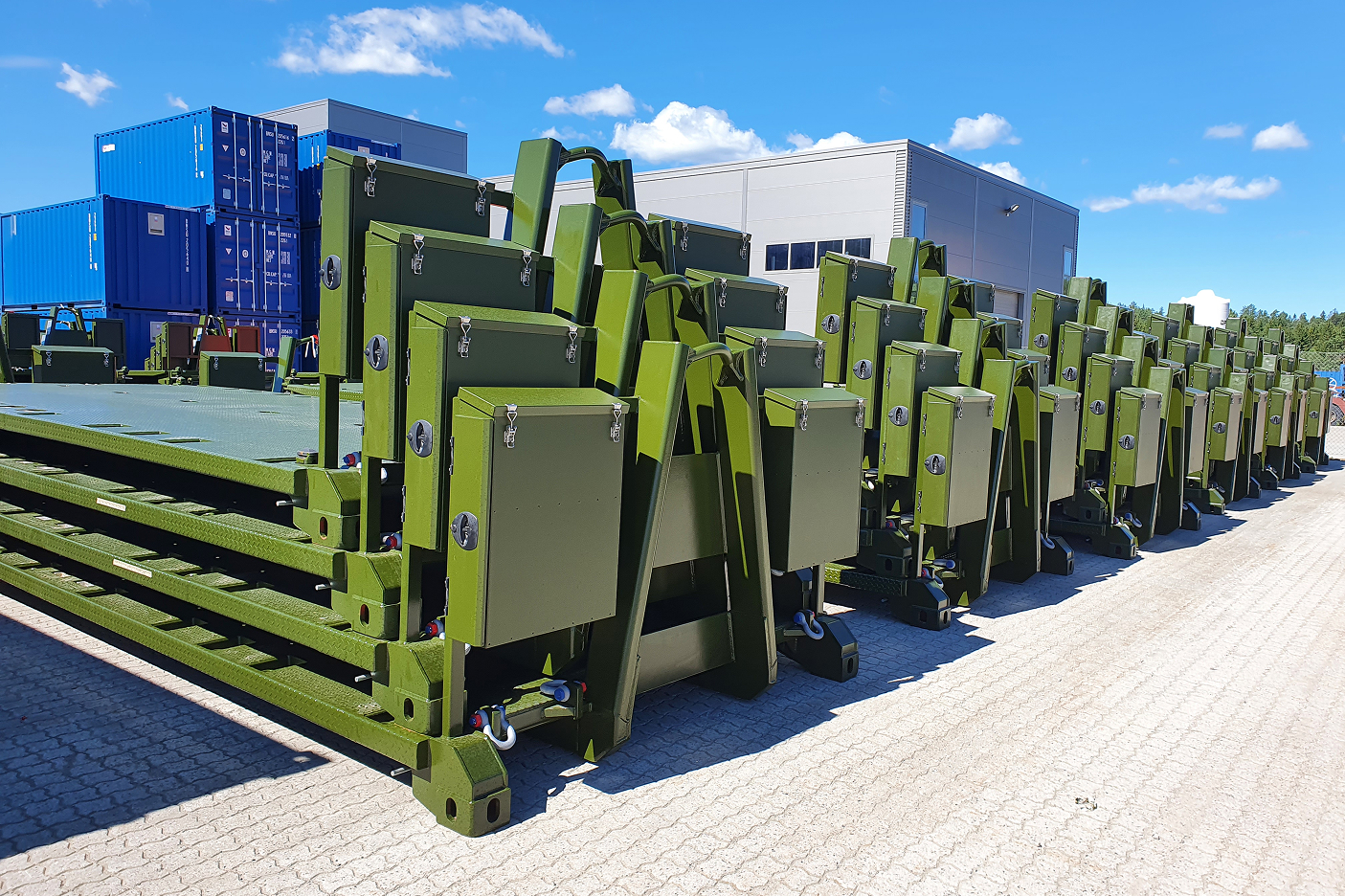

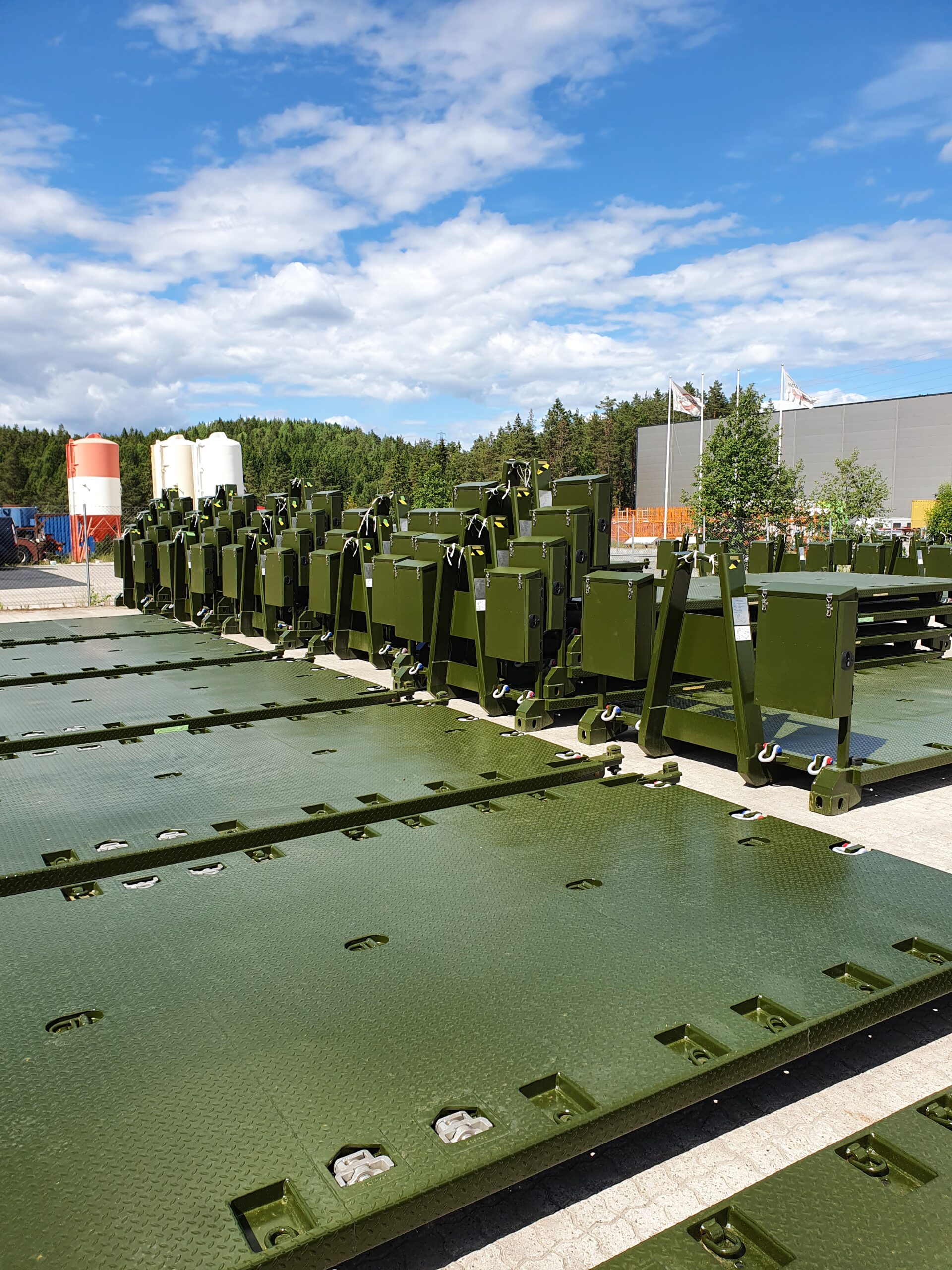

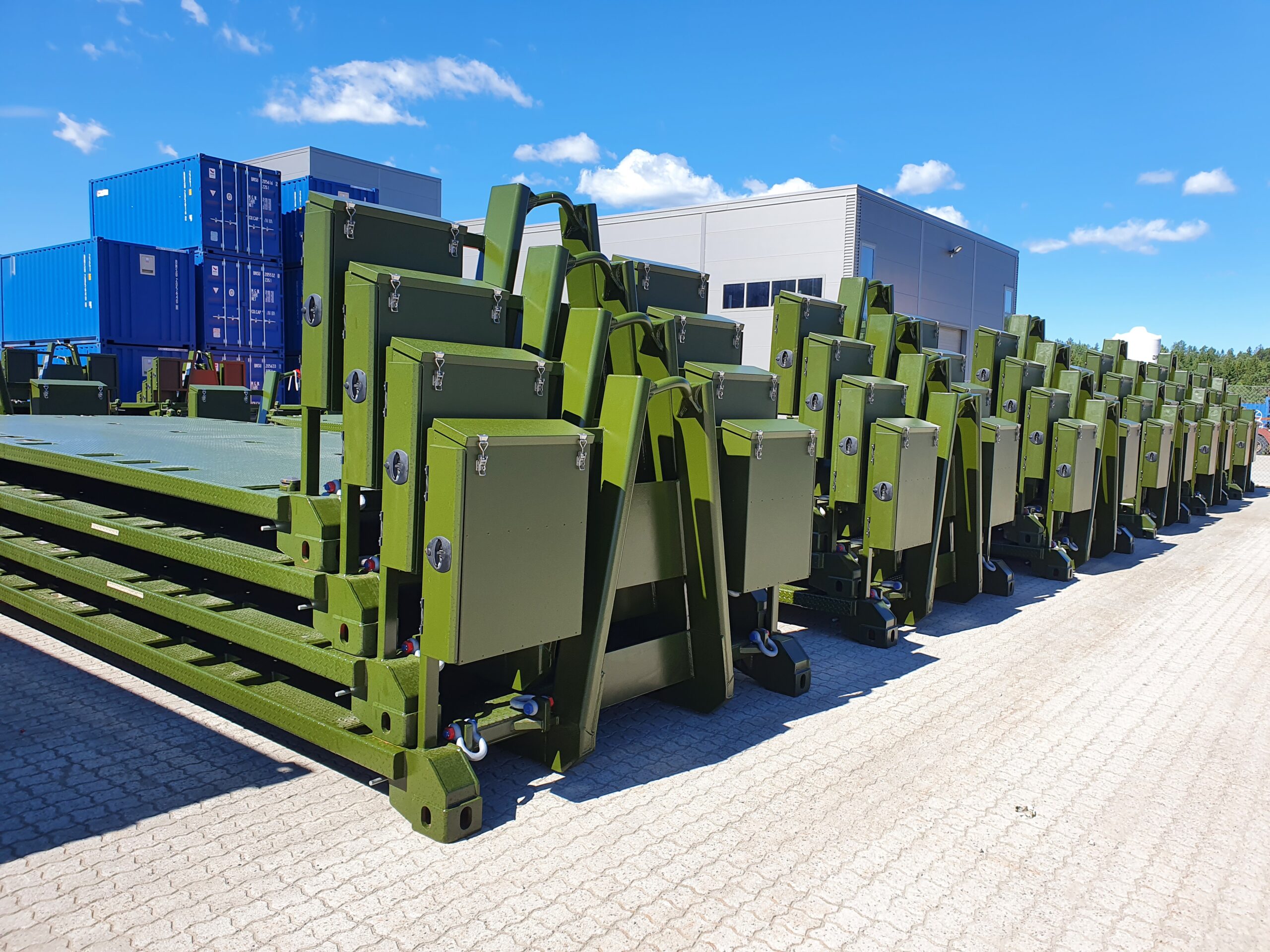

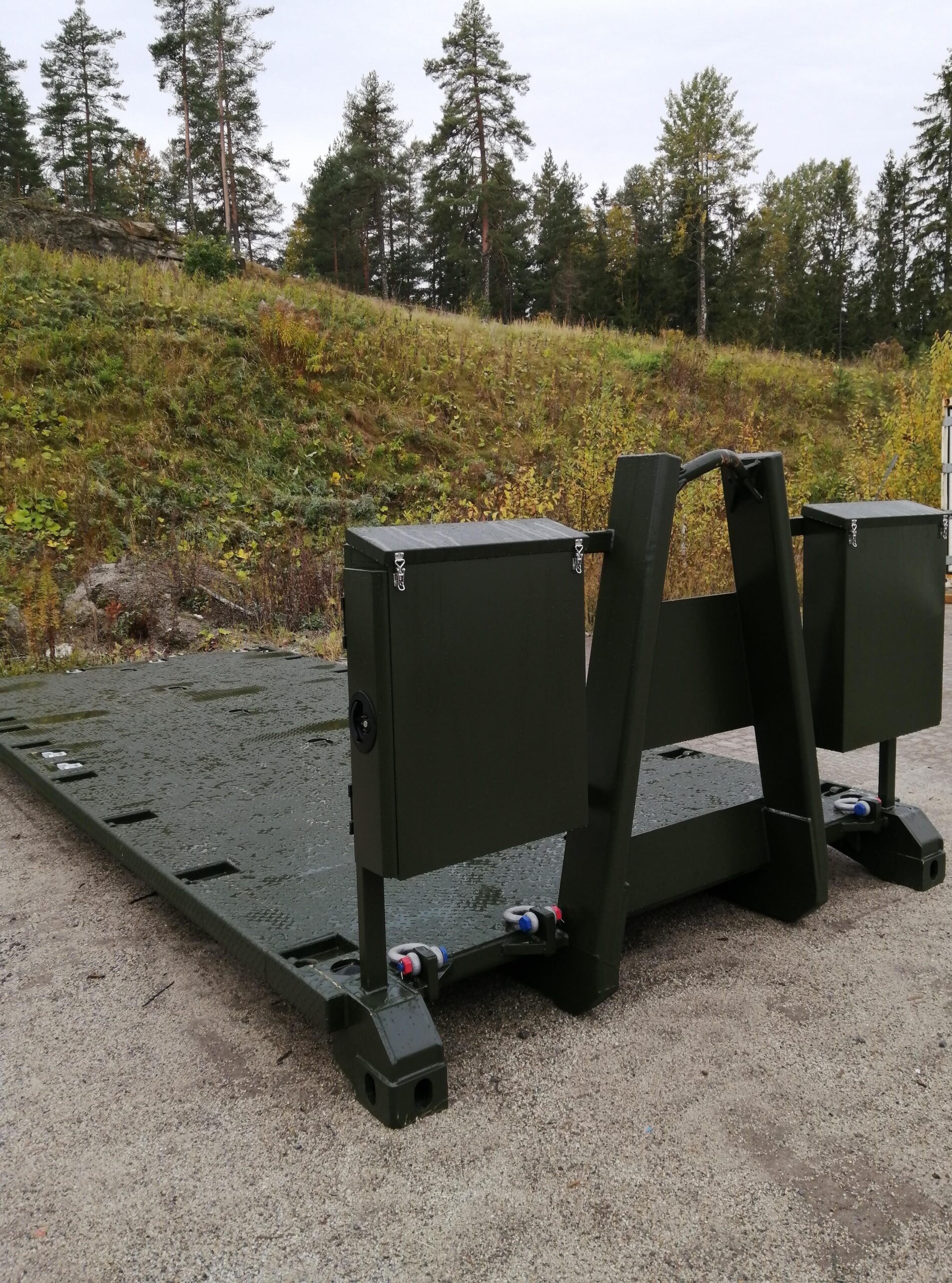

A versatile and proven logistics platform, the Nordic Shelter Flatrack is a key component of the Norwegian Armed Forces’ RMMV hook-lift transport system. Built to ISO and STANAG standards, it offers high payload capacity and can be stacked up to four units high for efficient deployment. Delivered in over a hundred units, the flatrack is adaptable for transporting containers, palletized goods, and vehicles, including M113, BV 206, and other vehicle classes under 15 tons. Integrated lashing points and front-mounted toolboxes can be customized to meet specific operational needs, ensuring flexibility across a wide range of cargo types.
Shelter variants
- Multipurpose Mission
- Adjustable-length
- Light-duty
- Medium-duty
- Heavy-duty
- Standard Hooklift
- Reinforced Hooklift
- Low-profile Flatrack

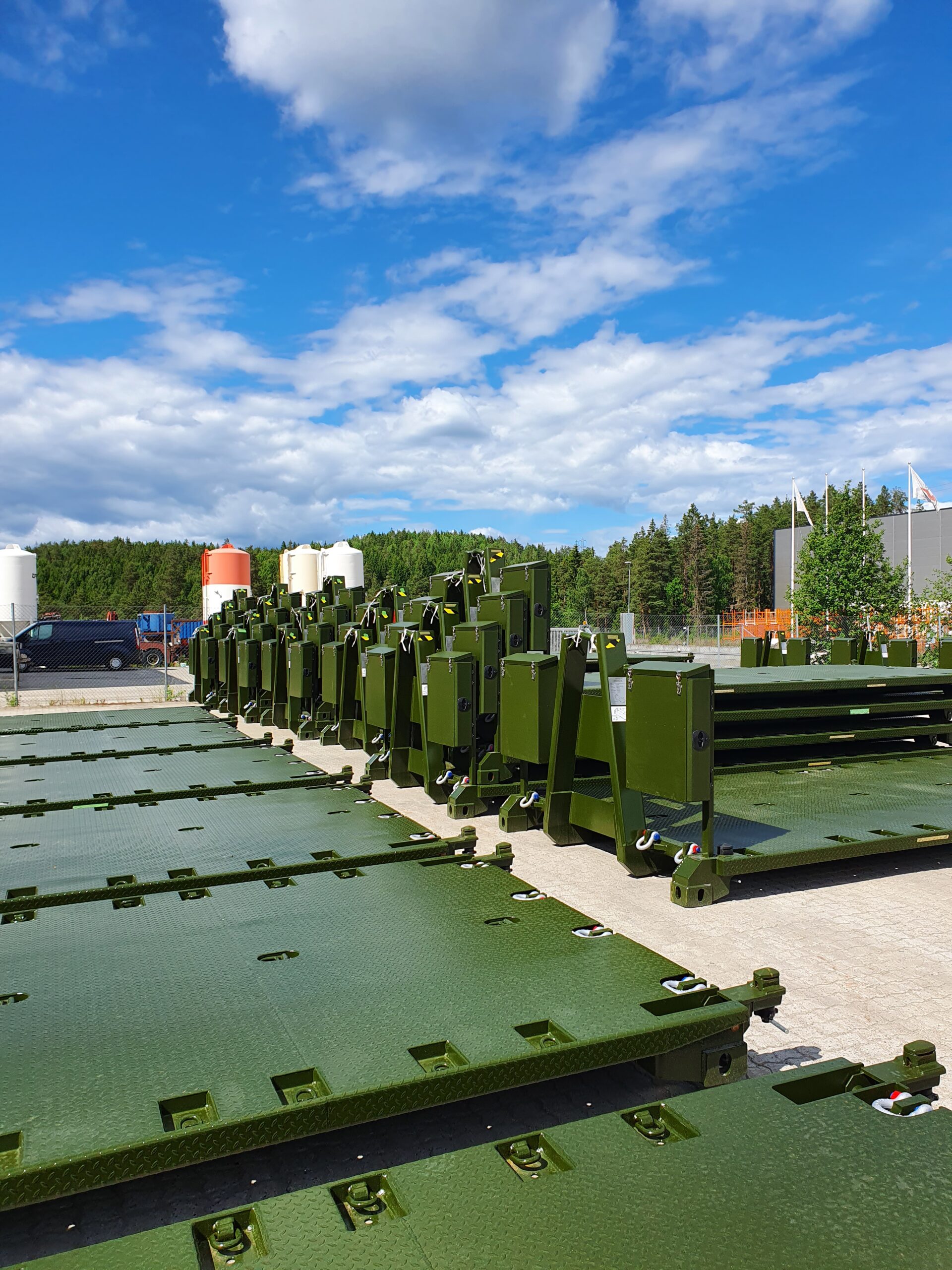

Gallery
Flatracks
A versatile and proven logistics platform, the Nordic Shelter Flatrack is a key component of the Norwegian Armed Forces’ RMMV hook-lift transport system. Built to ISO and STANAG standards, it offers high payload capacity and can be stacked up to four units high for efficient deployment. Delivered in over a hundred units, the flatrack is adaptable for transporting containers, palletized goods, and vehicles, including M113, BV 206, and other vehicle classes under 15 tons. Integrated lashing points and front-mounted toolboxes can be customized to meet specific operational needs, ensuring flexibility across a wide range of cargo types.
Shelter Variants
Multipurpose Mission
Adjustable-length
Light-duty
Medium-duty
Heavy-duty
Standard Hooklift
Reinforced Hooklift
Low-profile Flatrack

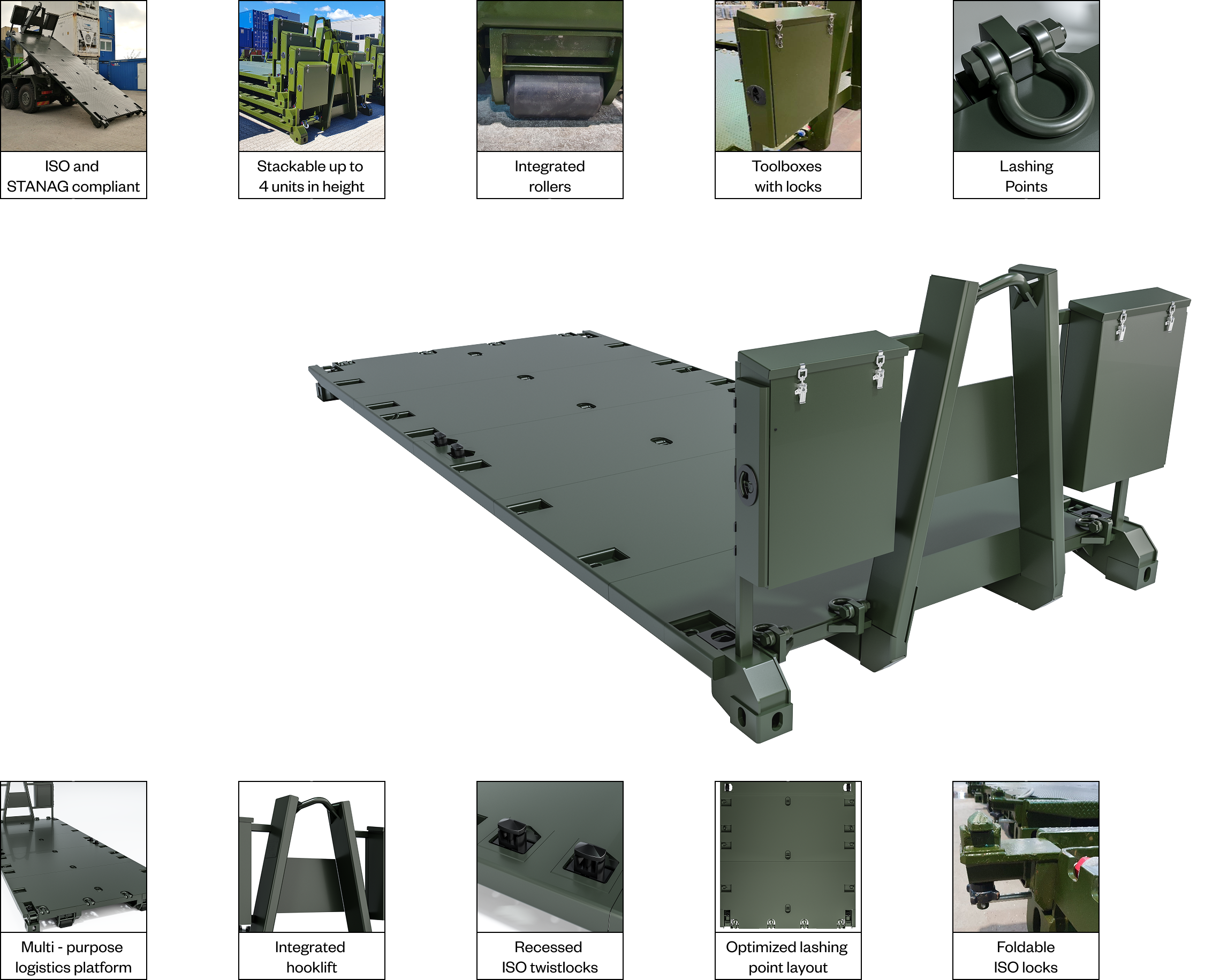

Heavy-duty logistics platform built to ISO and STANAG standards for reliable handling and transport in military and commercial operations
Designed to carry high payloads with reinforced structure, optimized lashing points and rail guides for secure cargo fastening

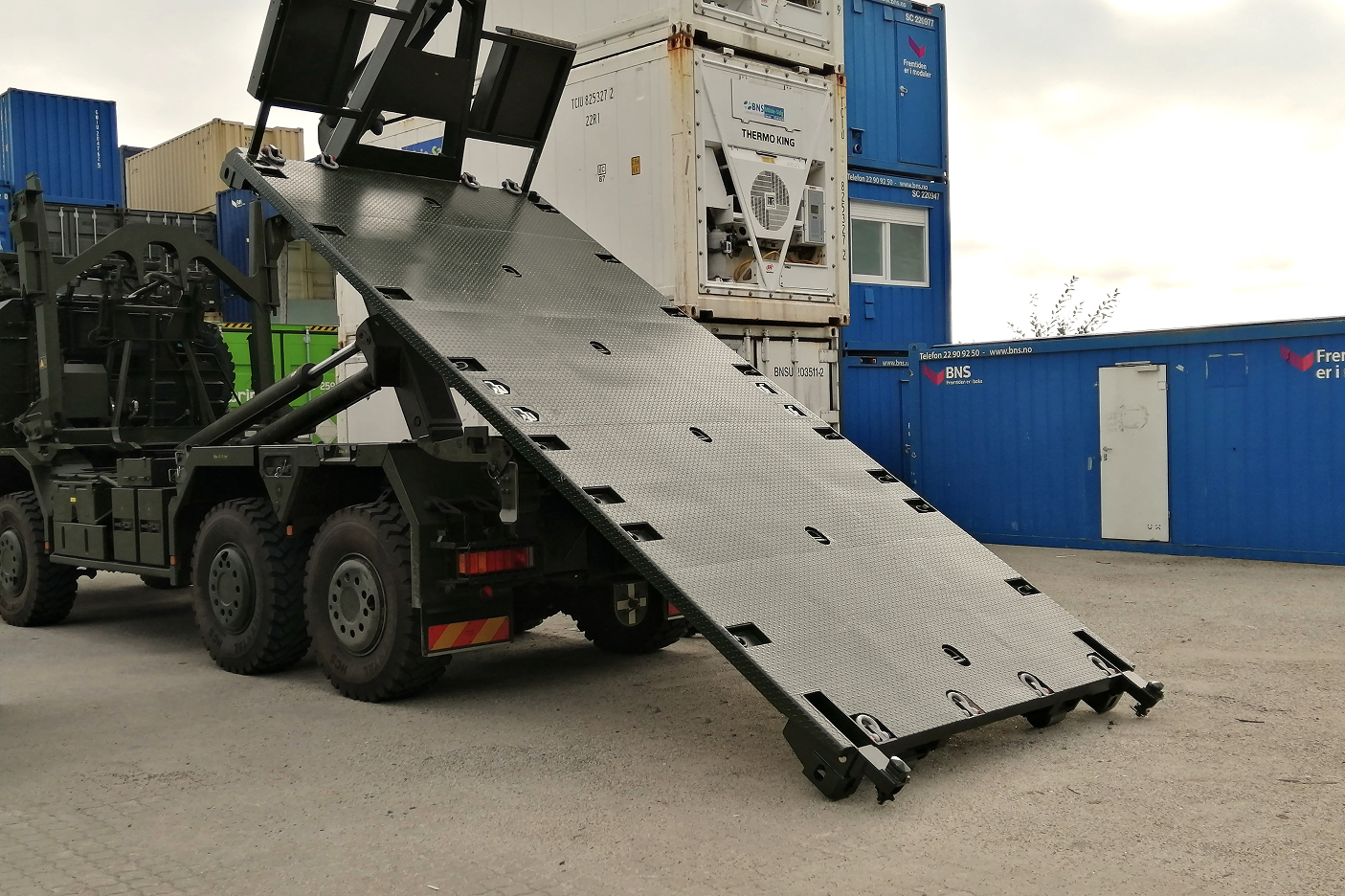

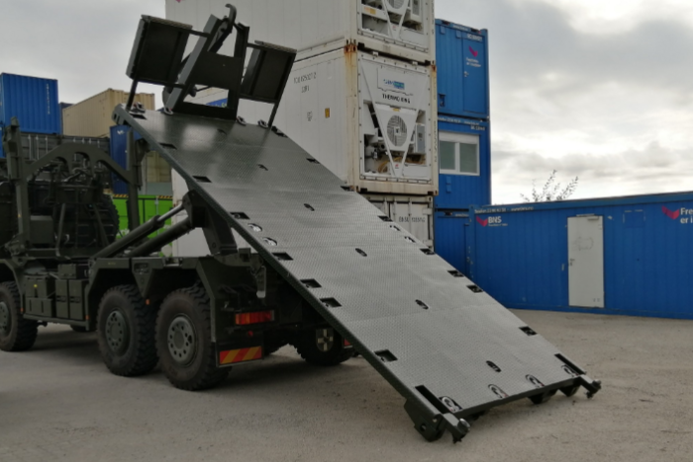

Compatible with hooklift systems, forklifts, and multi-purpose deployment vehicles for fast loading and field mobility
Optional toolboxes, ISO locks, rollers and mission-specific layouts increase functionality across different cargo types
Provides a stable and adaptable platform for containers, equipment, pallets and mission loads in various operational scenarios
Supports stacking up to 4 units high for space-efficient storage and transport during large-scale logistics missions
Features recessed ISO twistlock points and optimized deck layout for safer loading routines and reduced setup time
Customizable to specific user needs with foldable locking points, integrated hold-downs and modular attachment options
Specifications

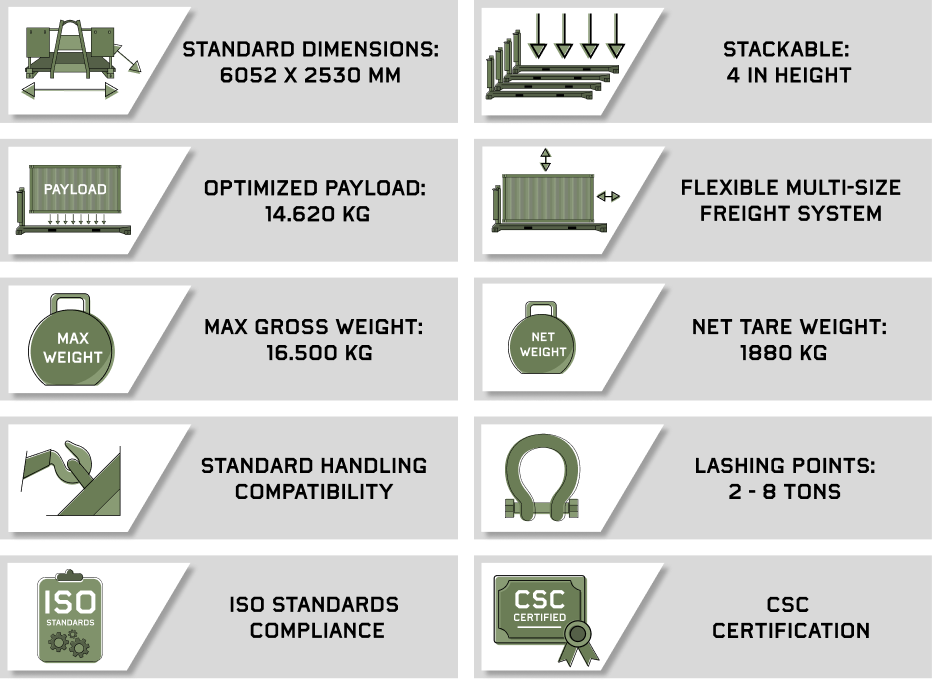

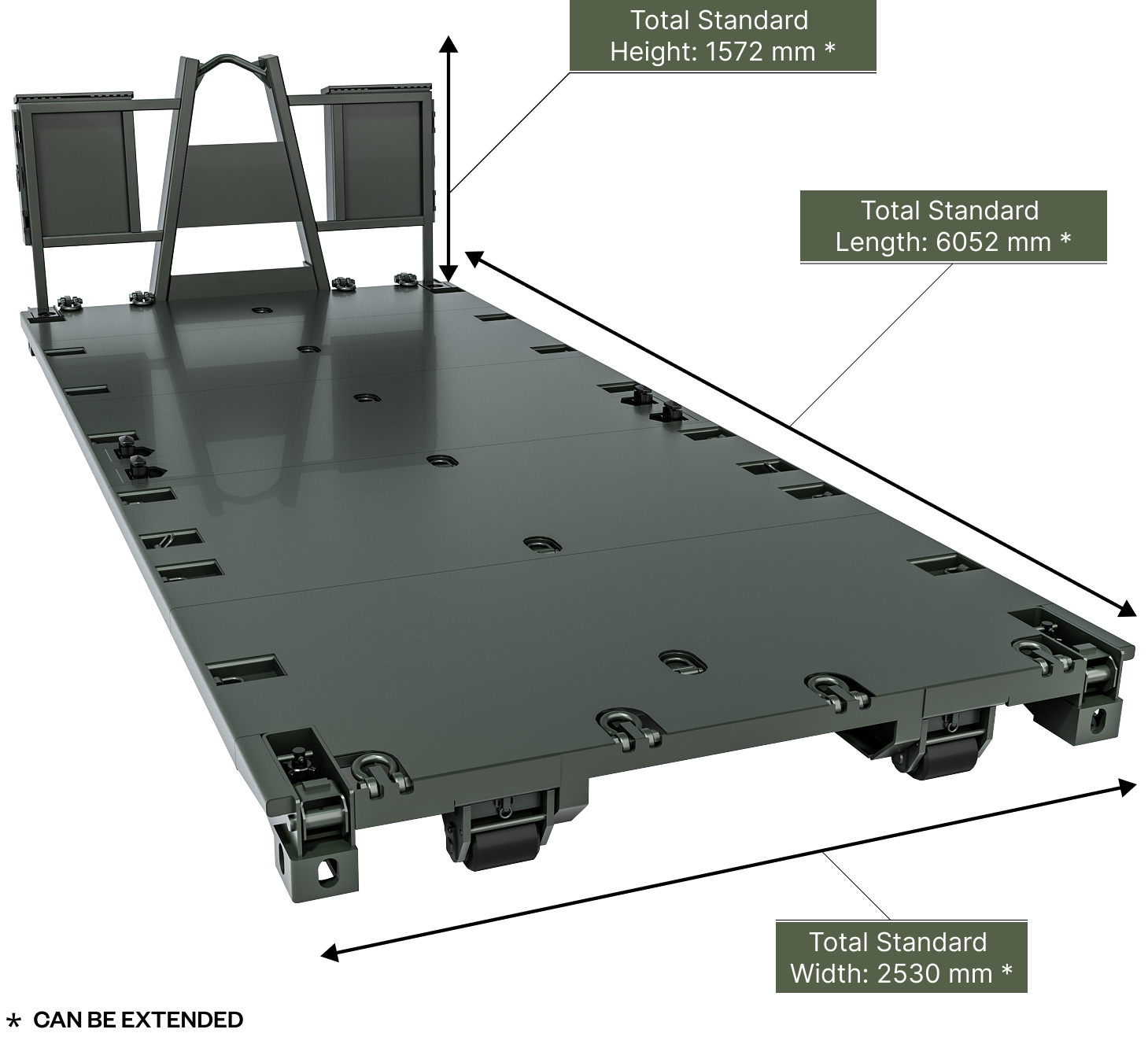

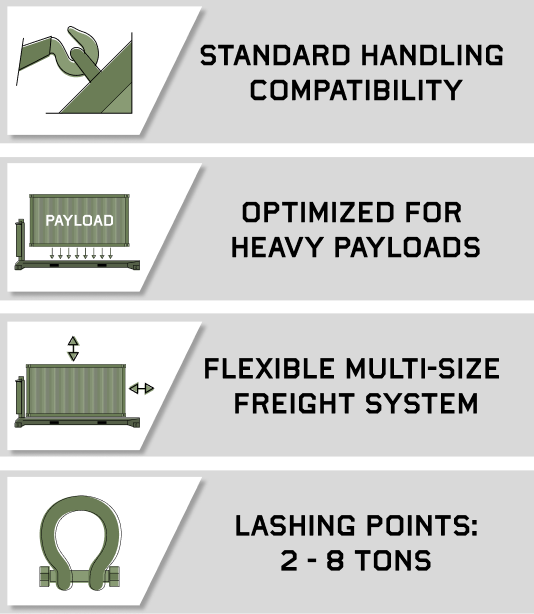

The flatrack is engineered to meet ISO and STANAG standards, featuring standardized dimensions of 6052 x 2530 mm, with the option to extend for requirements. Built from a robust steel structure, it supports an optimized payload of 14,620 kg, with a maximum gross weight of 16,500 kg and a net tare weight of 1880 kg. Designed for operational flexibility, it accommodates containers, palletized cargo, and vehicles, with lashing points rated between 2 and 8 tons. The flatrack includes foldable ISO locks, standard handling compatibility, and a multi-size freight system. It is CSC certified, stackable up to four units high, and optimized for secure and efficient logistics in military and industrial applications.
Features
The flatrack is fully compliant with ISO and STANAG standards, featuring foldable ISO locks, reinforced lashing points, and front-mounted toolboxes for functionality. It is designed to transport one 20-foot container or two 10-foot containers and allows lashing points to be adapted to customer needs. The structure is insulated with sandwich panels and stainless steel sheets, ensuring durability and flexibility in operations.
ISO and STANAG compliant.

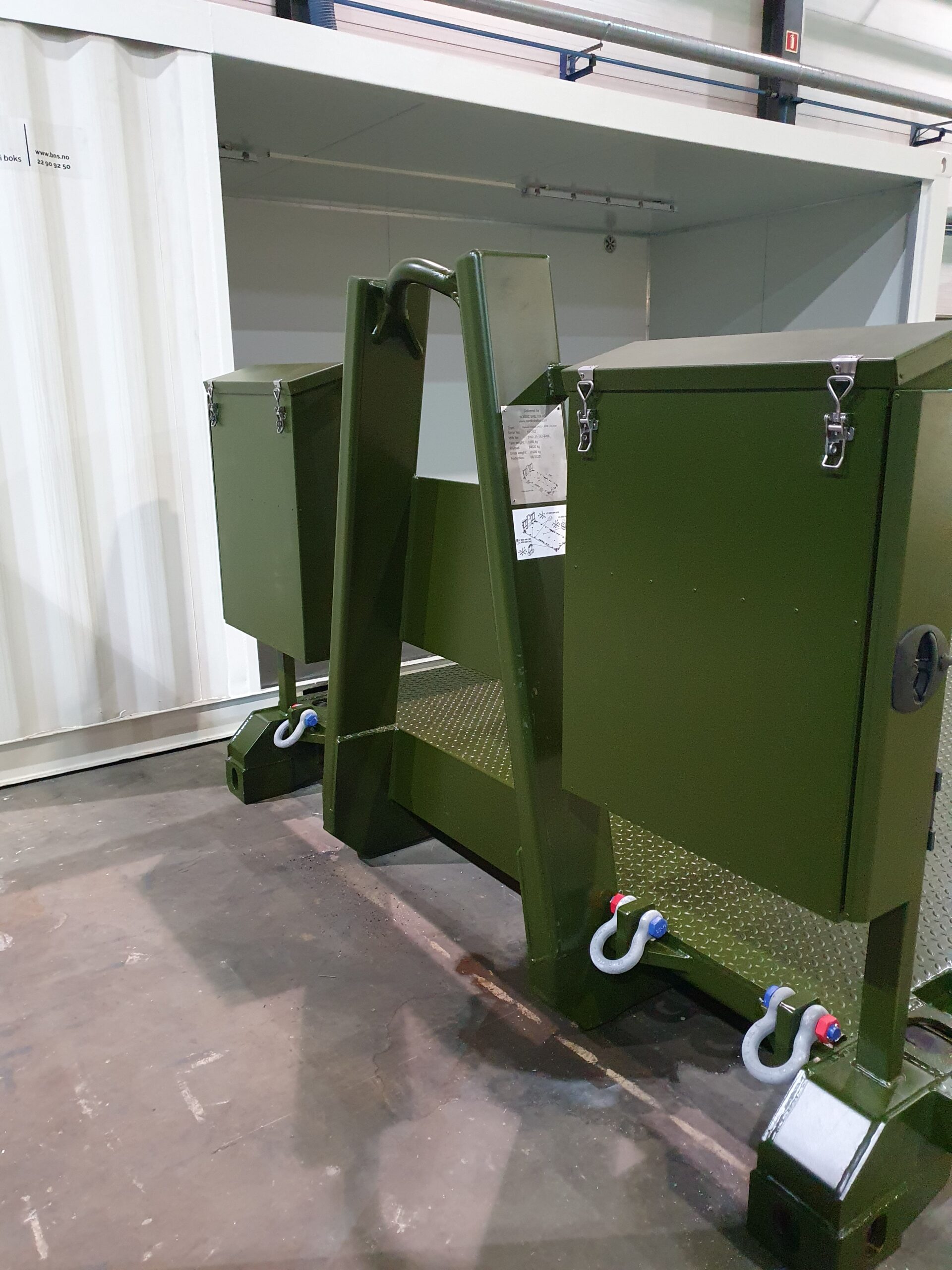

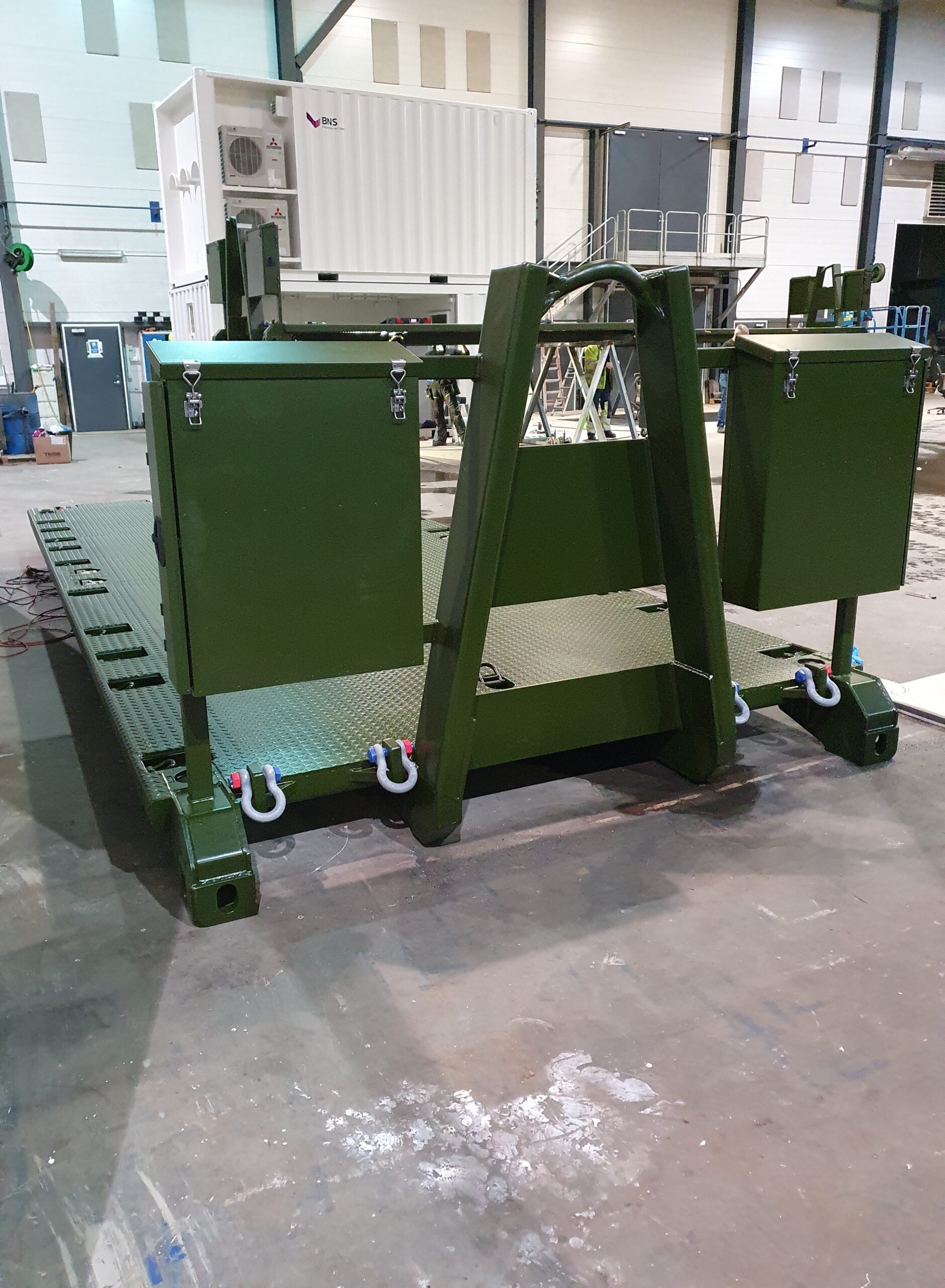

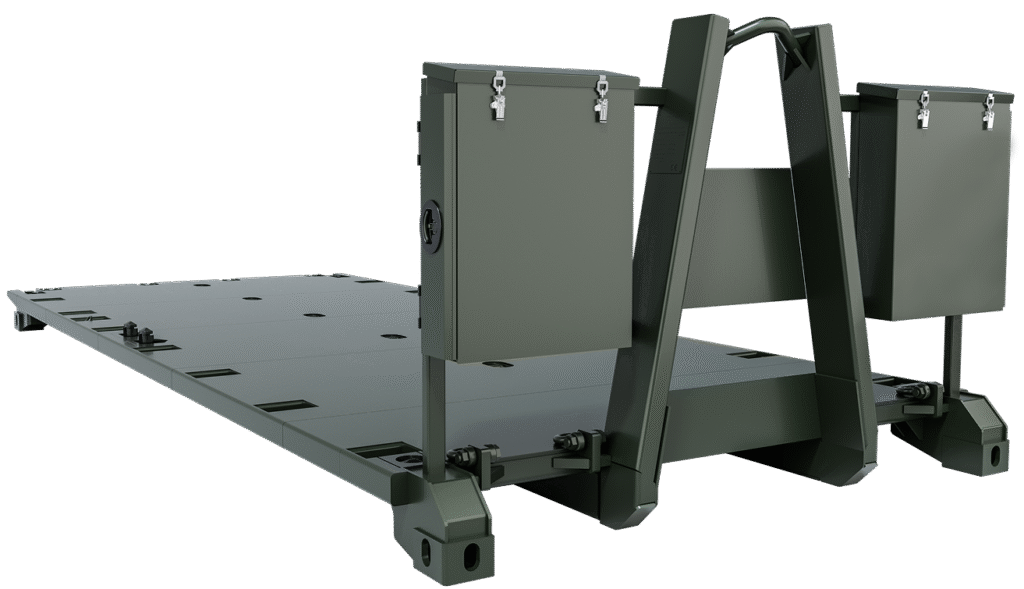

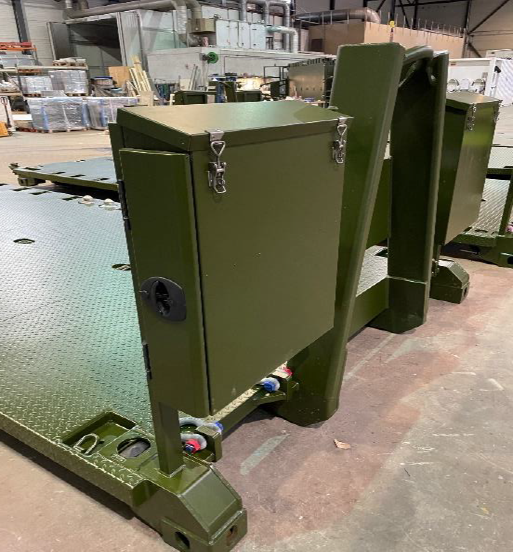

Toolboxes in front on each side.
Foldable ISO-locks.

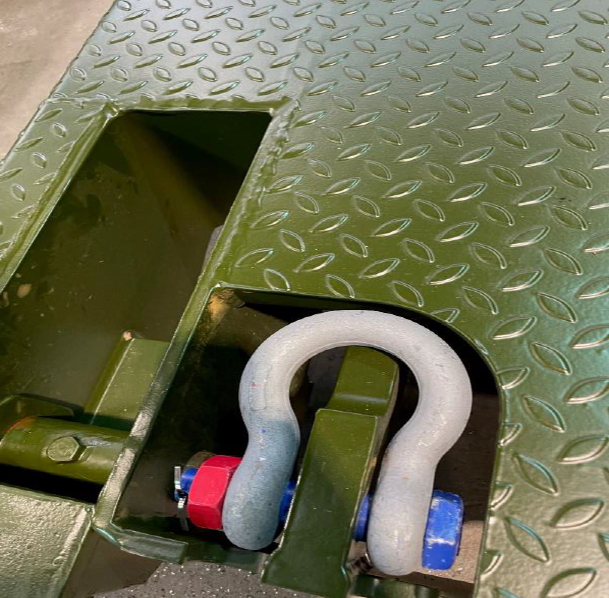

Lashing points/rings can be adapted/modified to customer needs.
Can transport 1 x 20 foot container or 2 x 10 foot containers.
Insulated with sandwich panels and stainless steel sheets on the inner walls.
Options
The flatrack can be adapted with a variety of optional features to meet specific operational and logistical needs. Custom lashing layouts, integrated toolboxes, and mission-specific modifications ensure flexibility across different cargo types and deployment scenarios. Each unit can be individually tailored to enhance functionality, efficiency, and compatibility with existing systems.

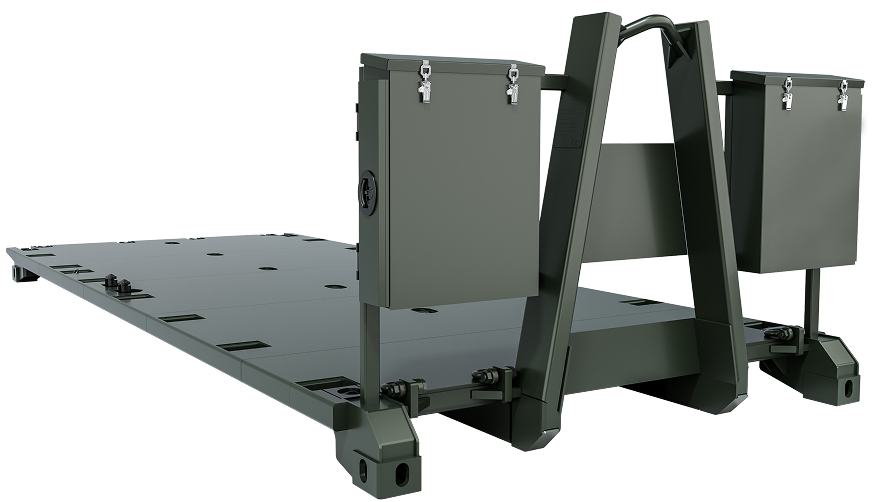

360° View
Rotate and zoom to explore the platform’s reinforced frame and heavy-duty construction. See how the flatrack is designed for rapid loading, intermodal transport, and secure handling across standard military and logistics systems. Experience the precision-engineered steel structure, durable surface materials, and optimized weight distribution that ensure maximum reliability under demanding operational loads. Built for military transport, emergency logistics, and industrial applications, the flatrack platform delivers strength, stability, and versatility — providing a dependable base for equipment movement wherever fast deployment and high load capacity are essential.
Gallery

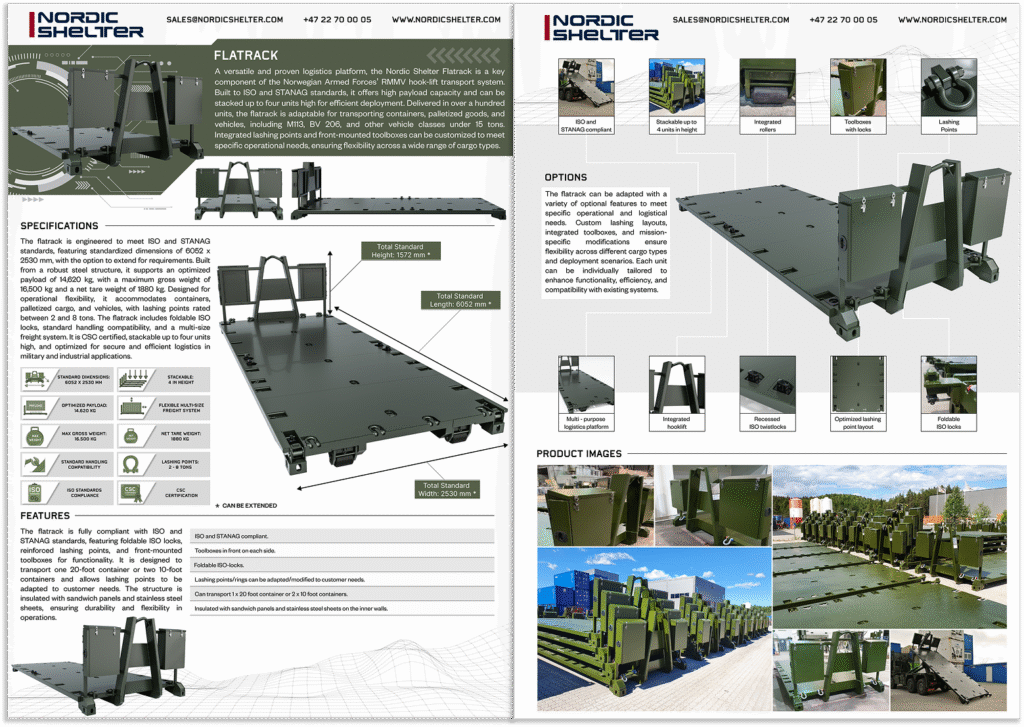

Download Datasheet
