Mobile Hospitals
Mobile Hospitals
The Mobile Hospital system has been developed in multiple specialized configurations to meet a broad range of modern medical and operational demands worldwide. Designed as a modular, rapidly deployable solution, it includes dedicated units such as operating rooms, intensive care modules, treatment areas, diagnostic suites, vaccination units, and medical storage facilities — each engineered for reliable field performance. Built for missions requiring highly mobile medical capability, the system delivers a fully functional healthcare environment and dependable autonomous operation in any scenario.
Shelter variants
- ORM – Operating Room Module
- ERM – Emergency Room Module
- ICM – Intensive Care Module
- GTM – General Treatment Module
- DSM – Dental Module
- WDM – Ward Module
- IMM – Intermediate Module
- BCM – Blood Collecting Module
- VIM – Vaccination Module
- MSR – Medical Storage Room
Gallery
Mobile Hospitals
Special Shelters are purpose-built container units developed to support highly specific and sensitive field operations. With a strong focus on adaptability, each unit is engineered to serve dedicated roles such as hazardous material handling, refrigerated storage, sanitation, workshops, communications, and more. The shelters offer high mobility, structural durability, and are fully customizable to meet the functional and technical demands of both civilian and military sectors. Whether used for logistics, protection, or mission-critical support, Special Shelters deliver reliable performance wherever it’s needed most.
Shelter Variants
ORM – Operating Room Module
ERM – Emergency Room Module
ICM – Intensive Care Module
GTM – General Treatment Module
DSM – Dental Module
WDM – Ward Module
IMM – Intermediate Module
BCM – Blood Collecting Module
VIM – Vaccination Module
MSR – Medical Storage Room

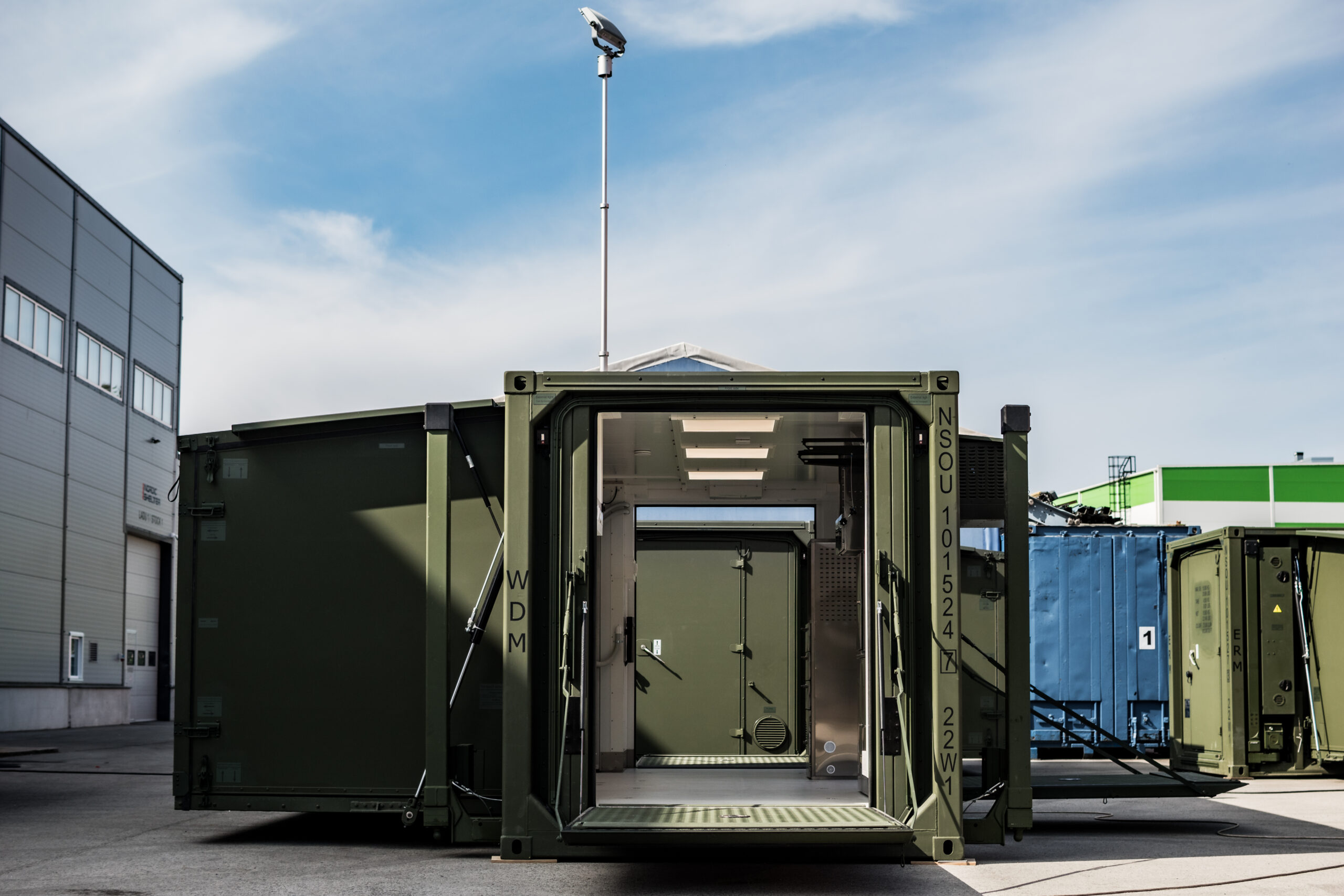

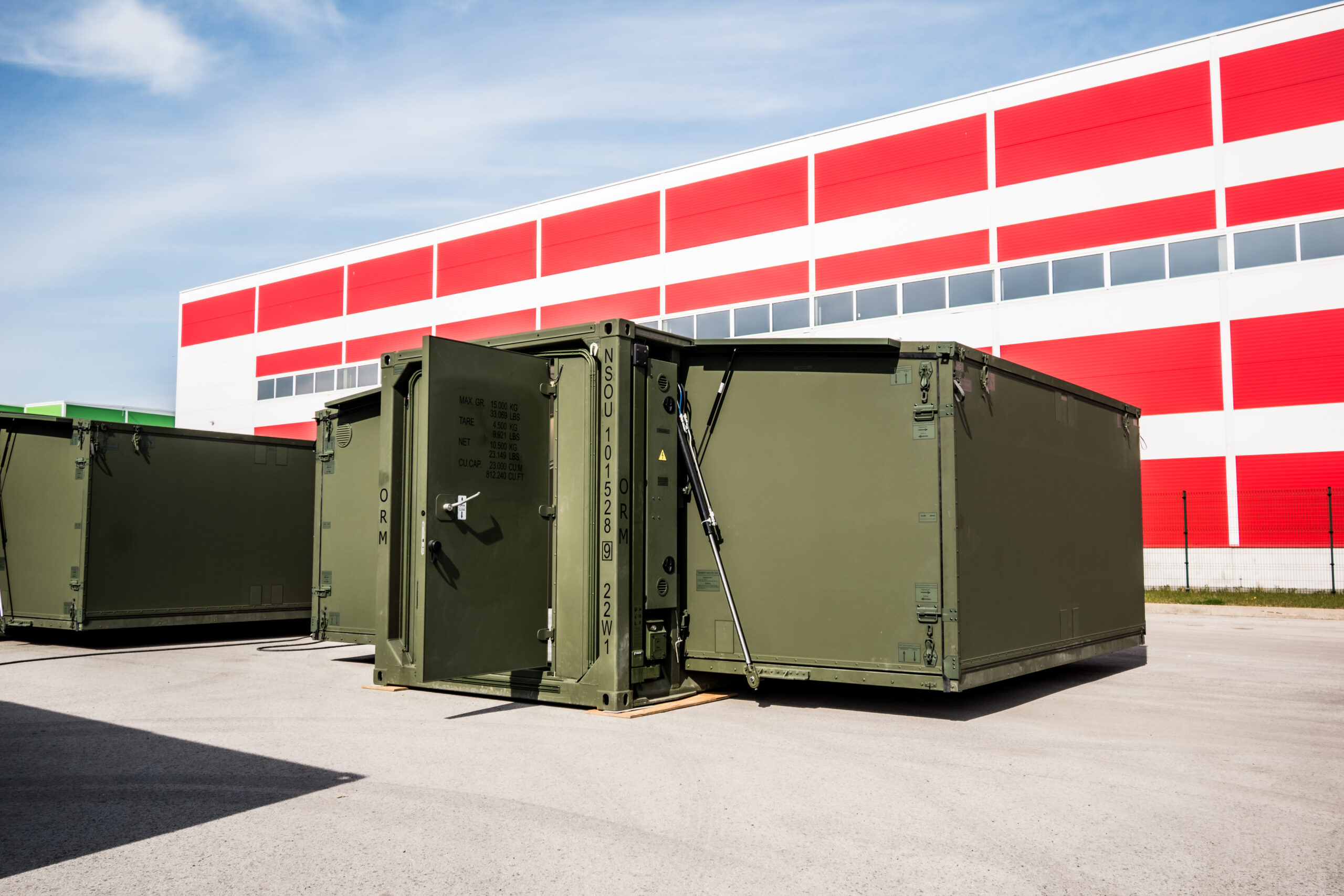

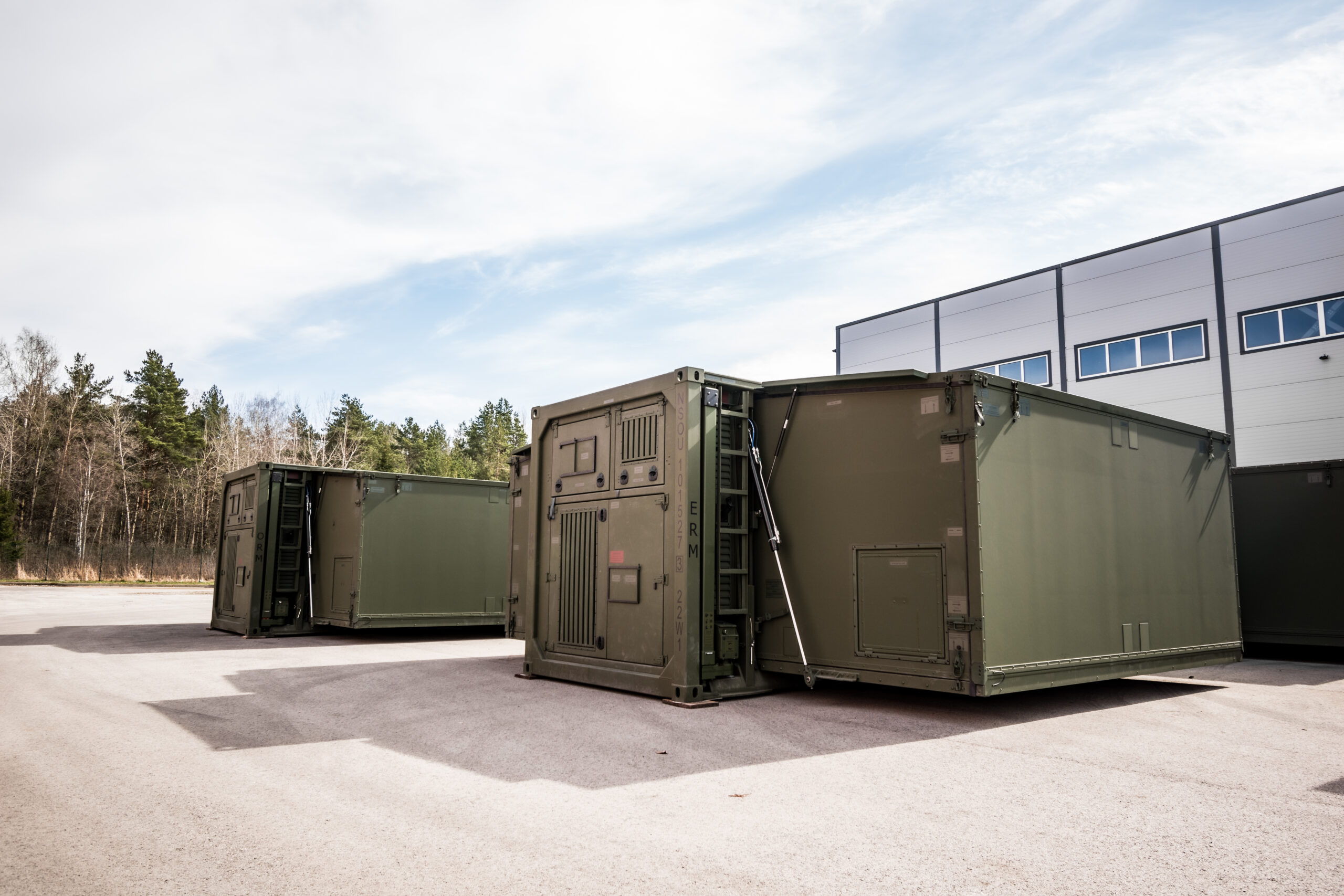

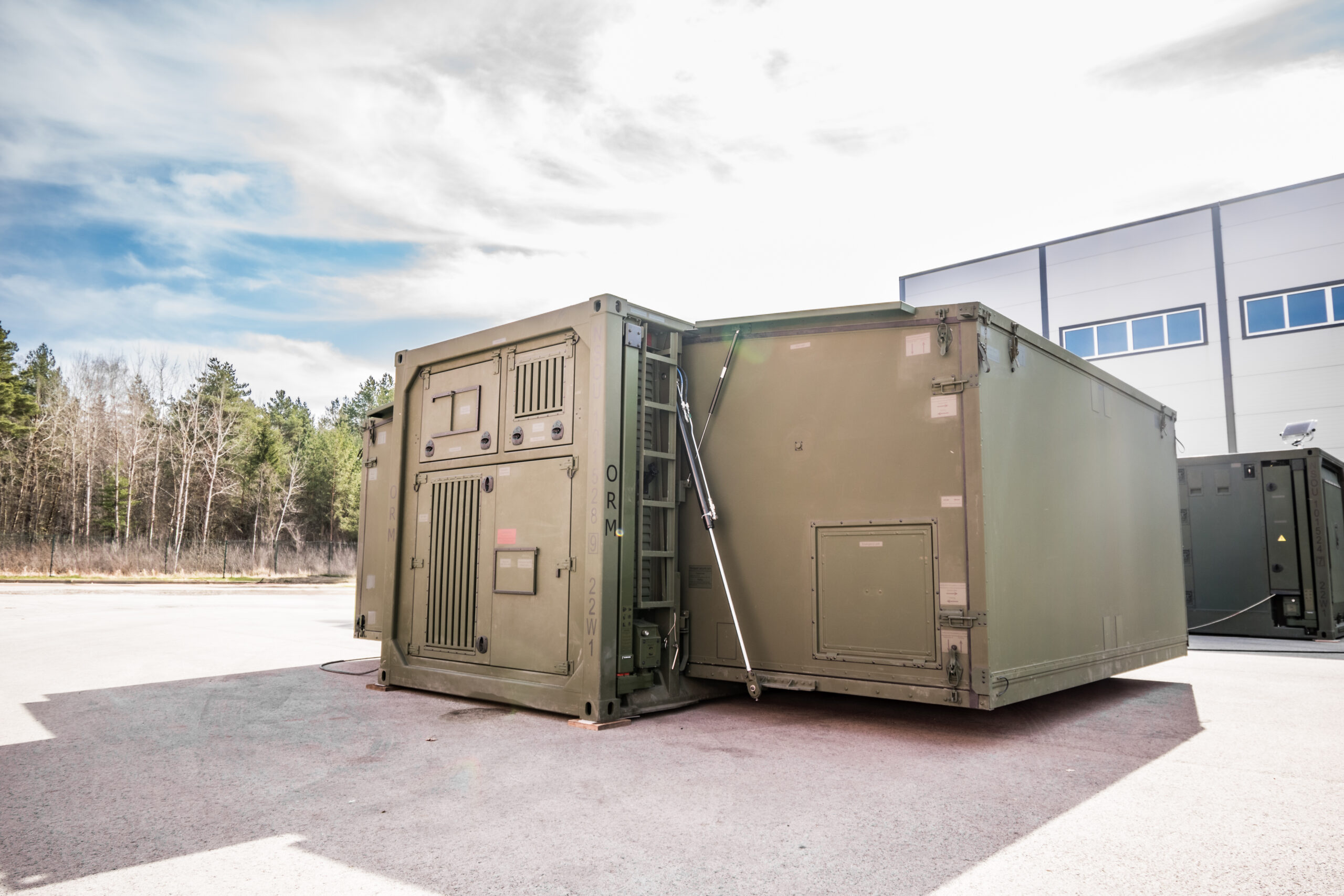

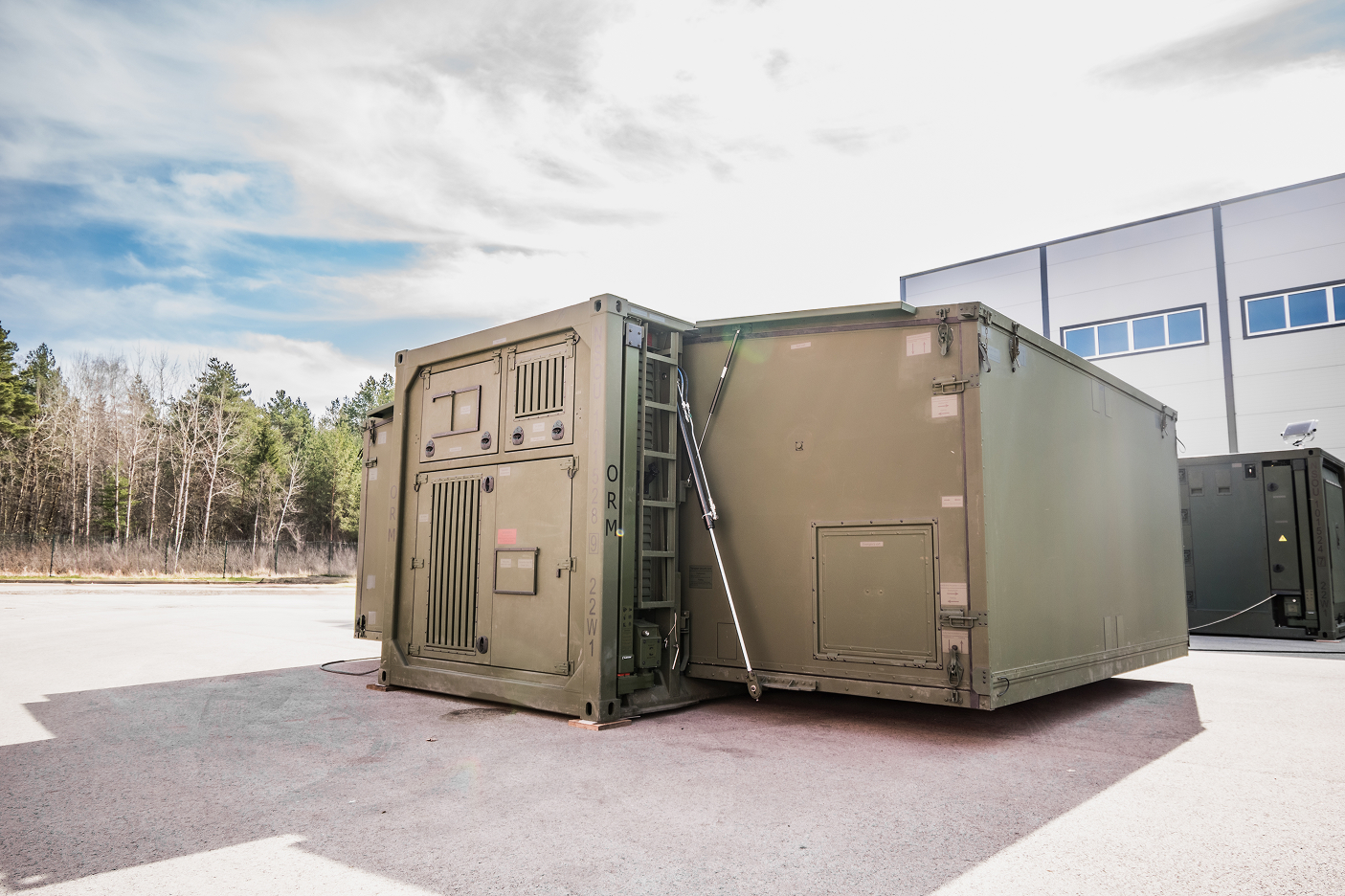

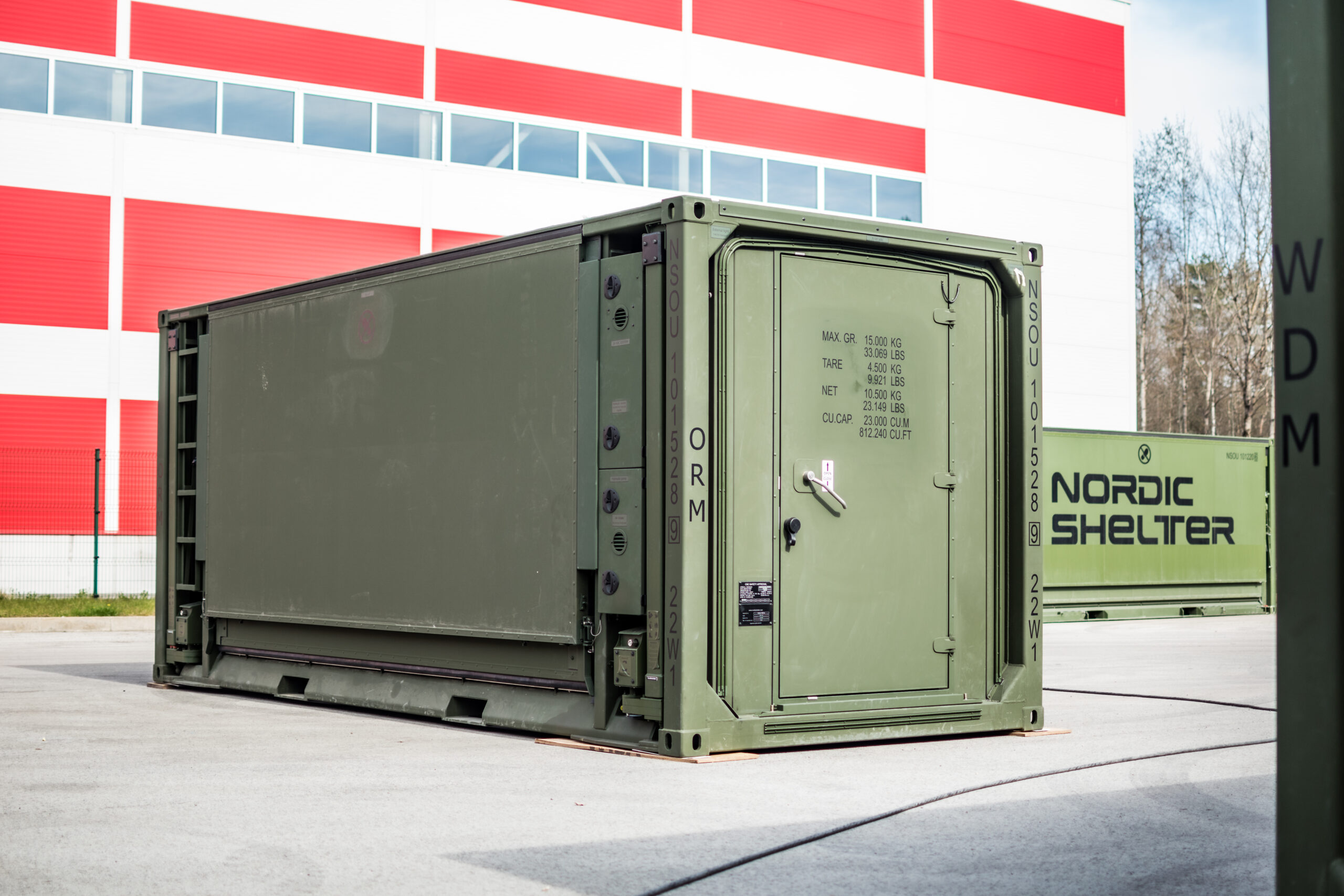

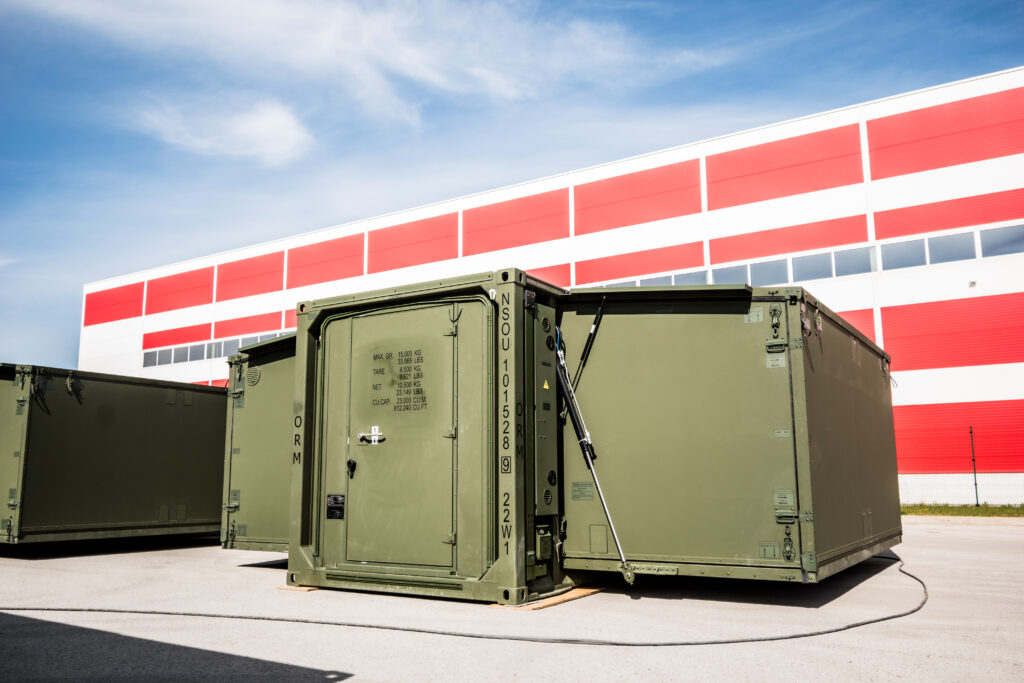

Built for fast medical deployment with stable hooklift handling and secure transport in challenging environments

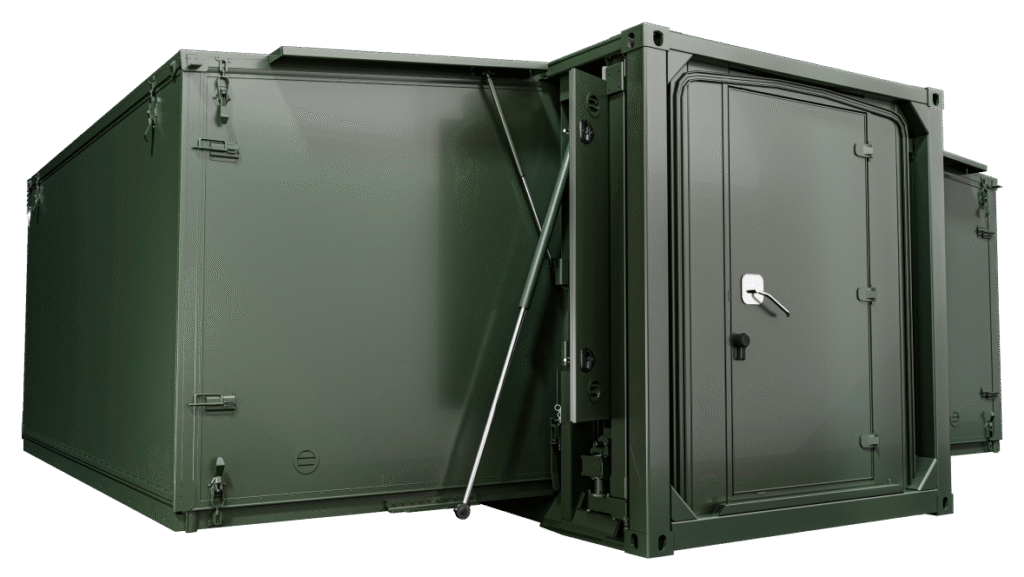

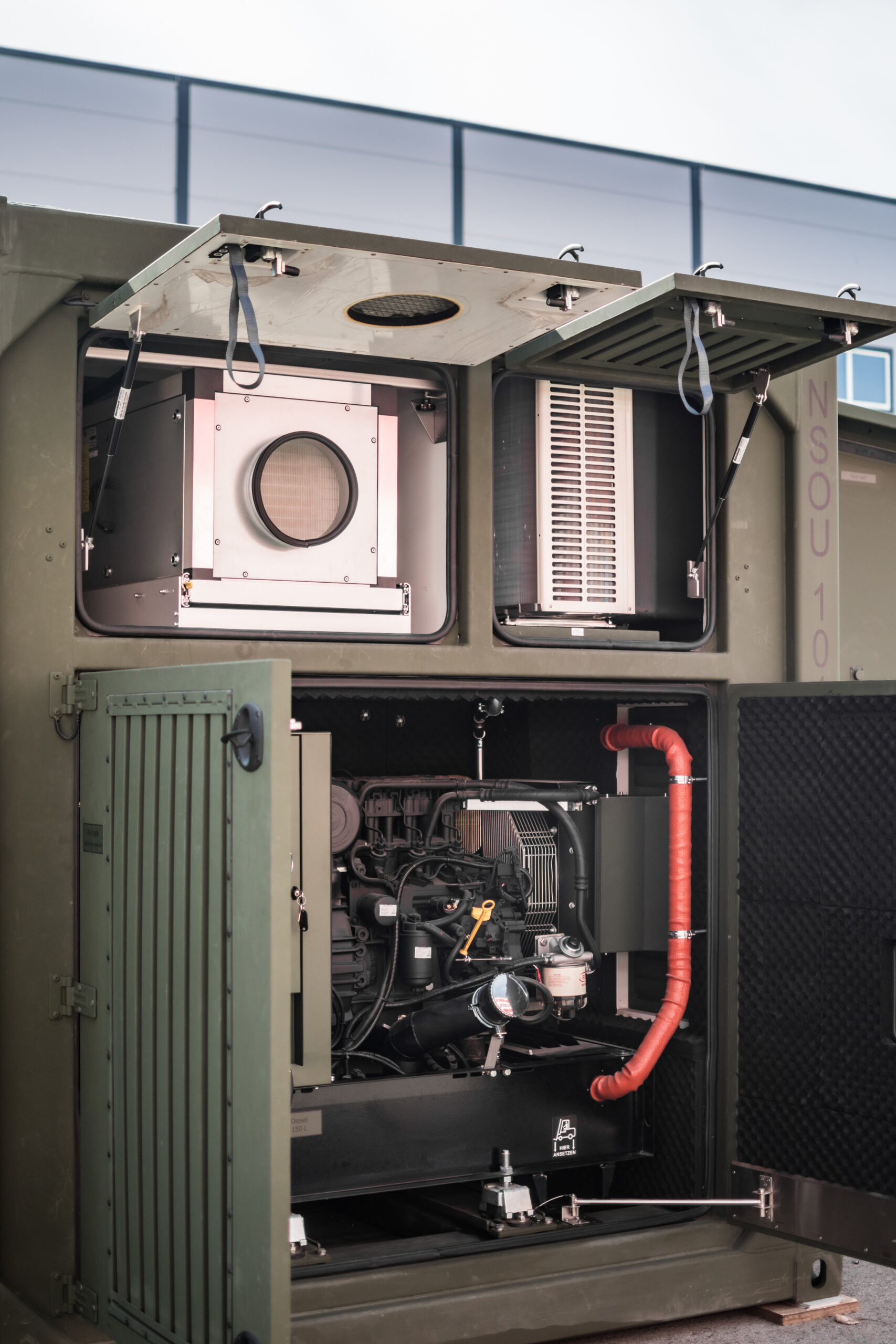

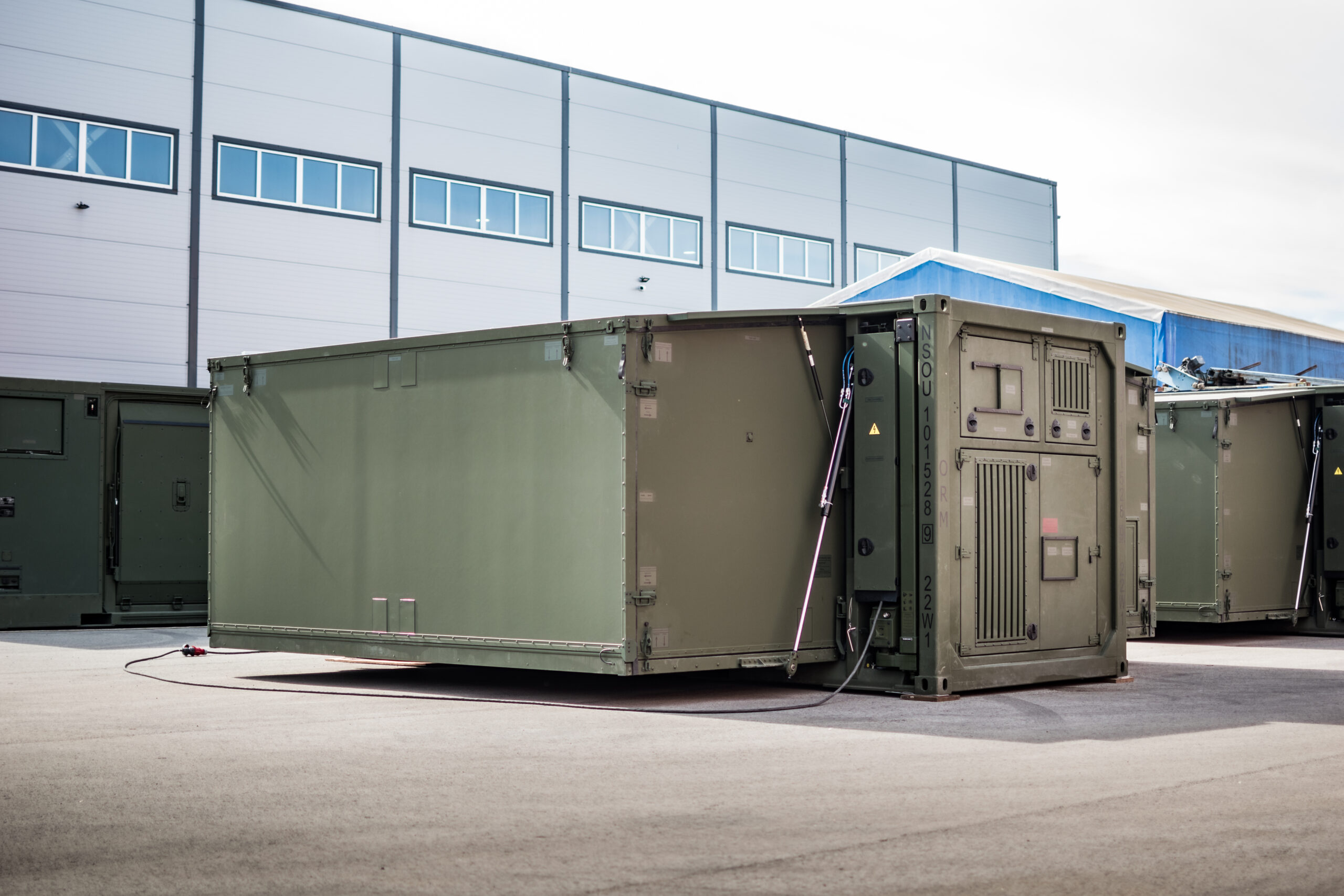

Exterior structure supports add-on medical systems such as HVAC, generators, and climate-control modules for field readiness

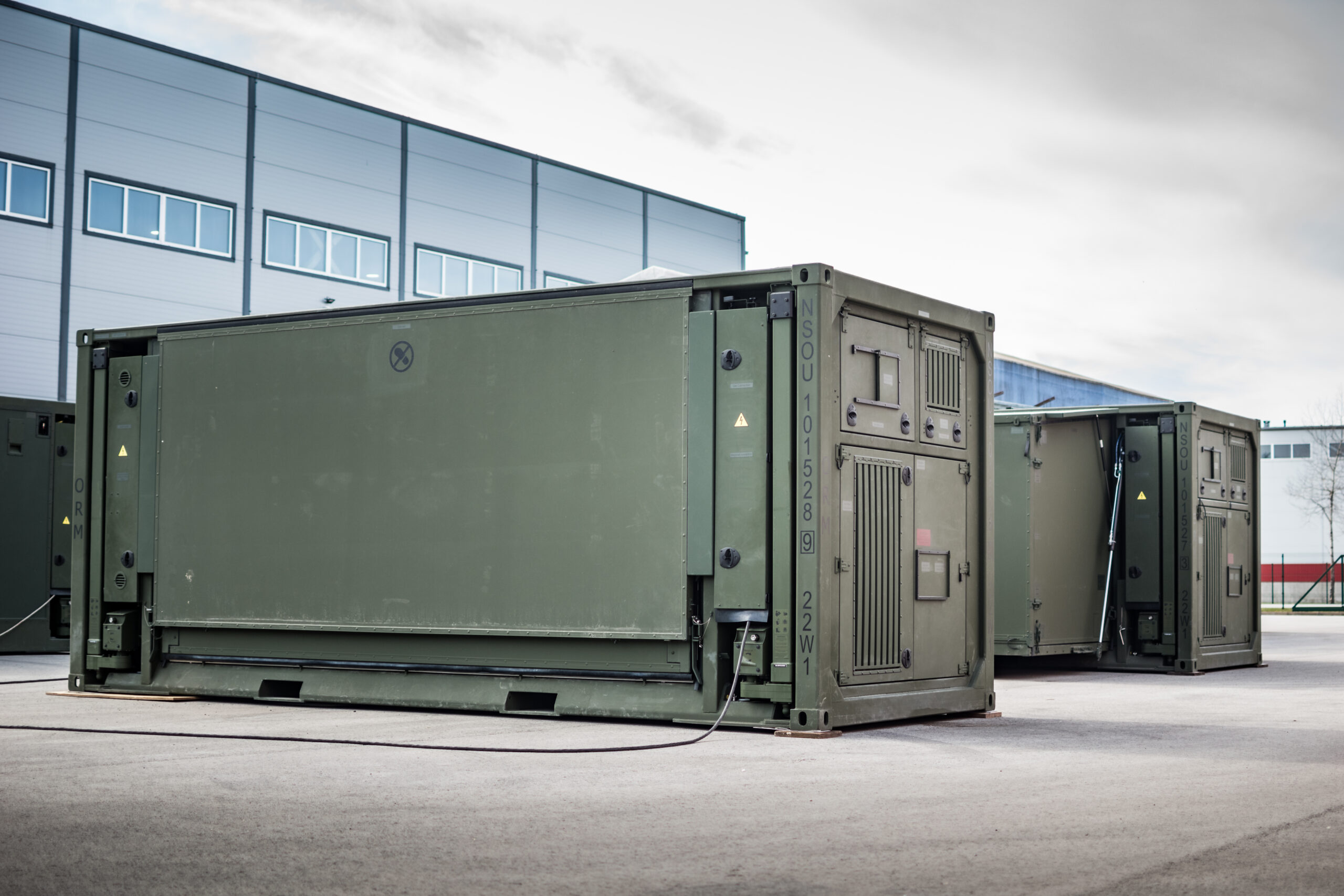

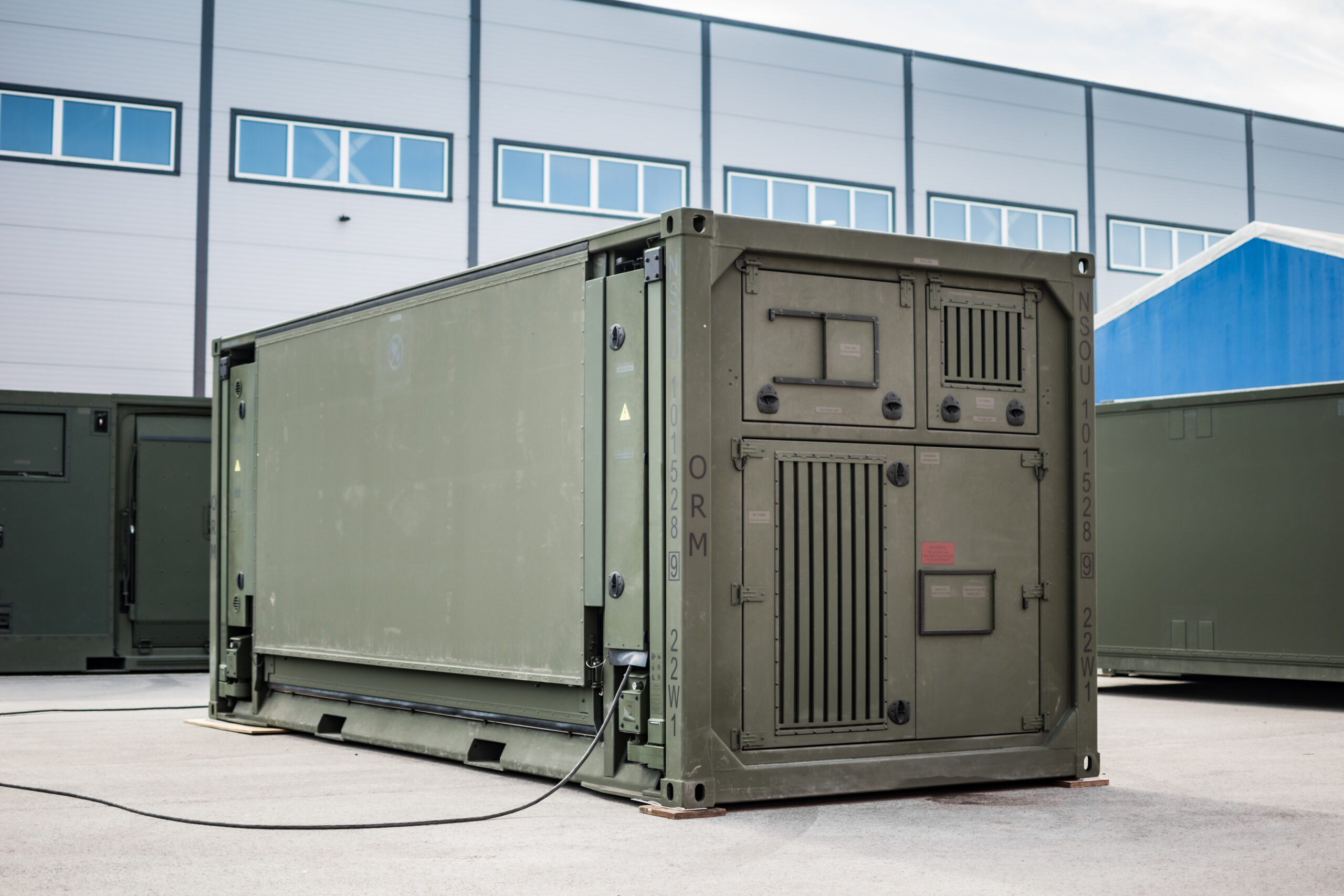

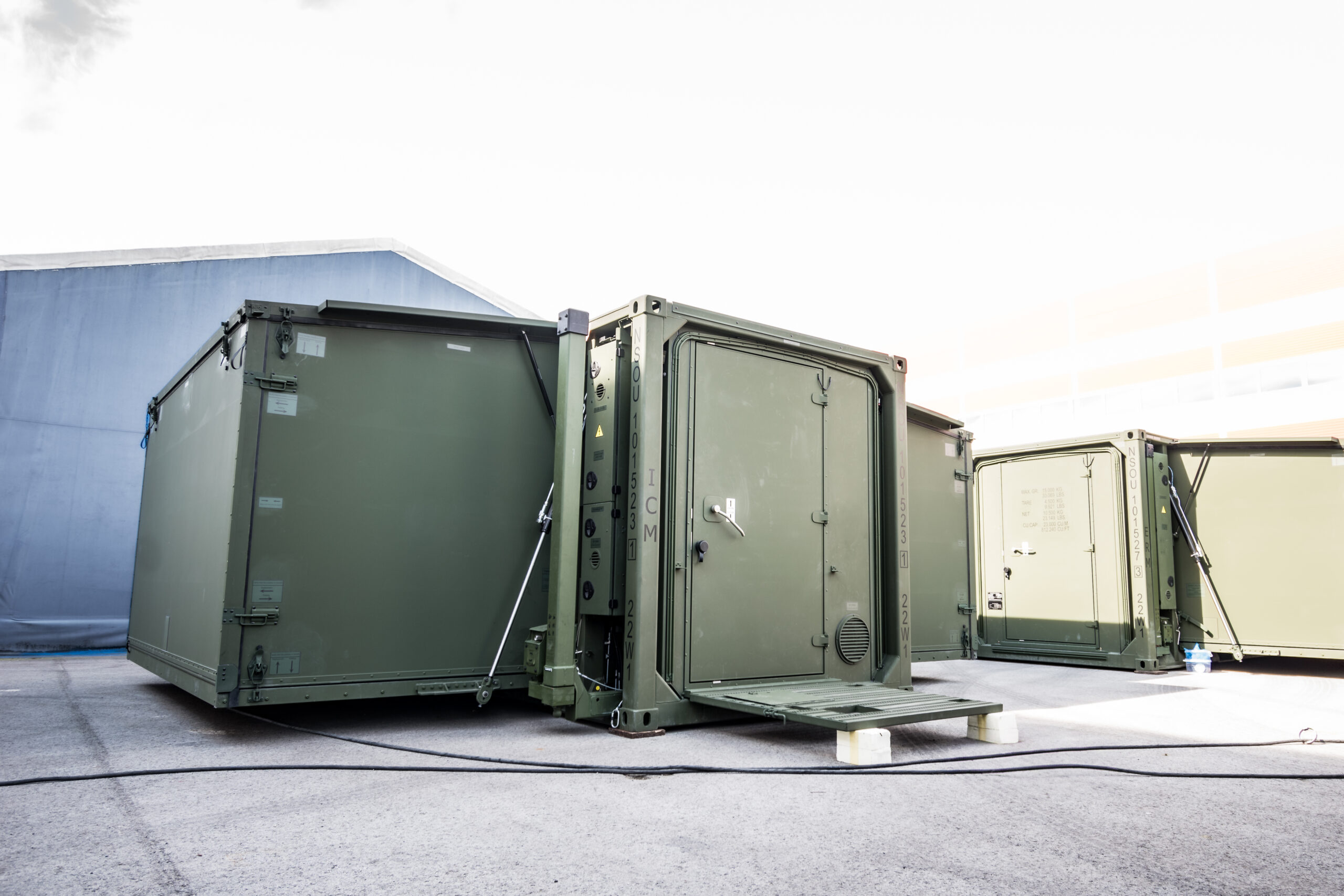

Designed with practical service openings and access points to streamline medical operations during setup and treatment
Durable, field-ready construction ensures continuous operation in both civilian and military medical missions

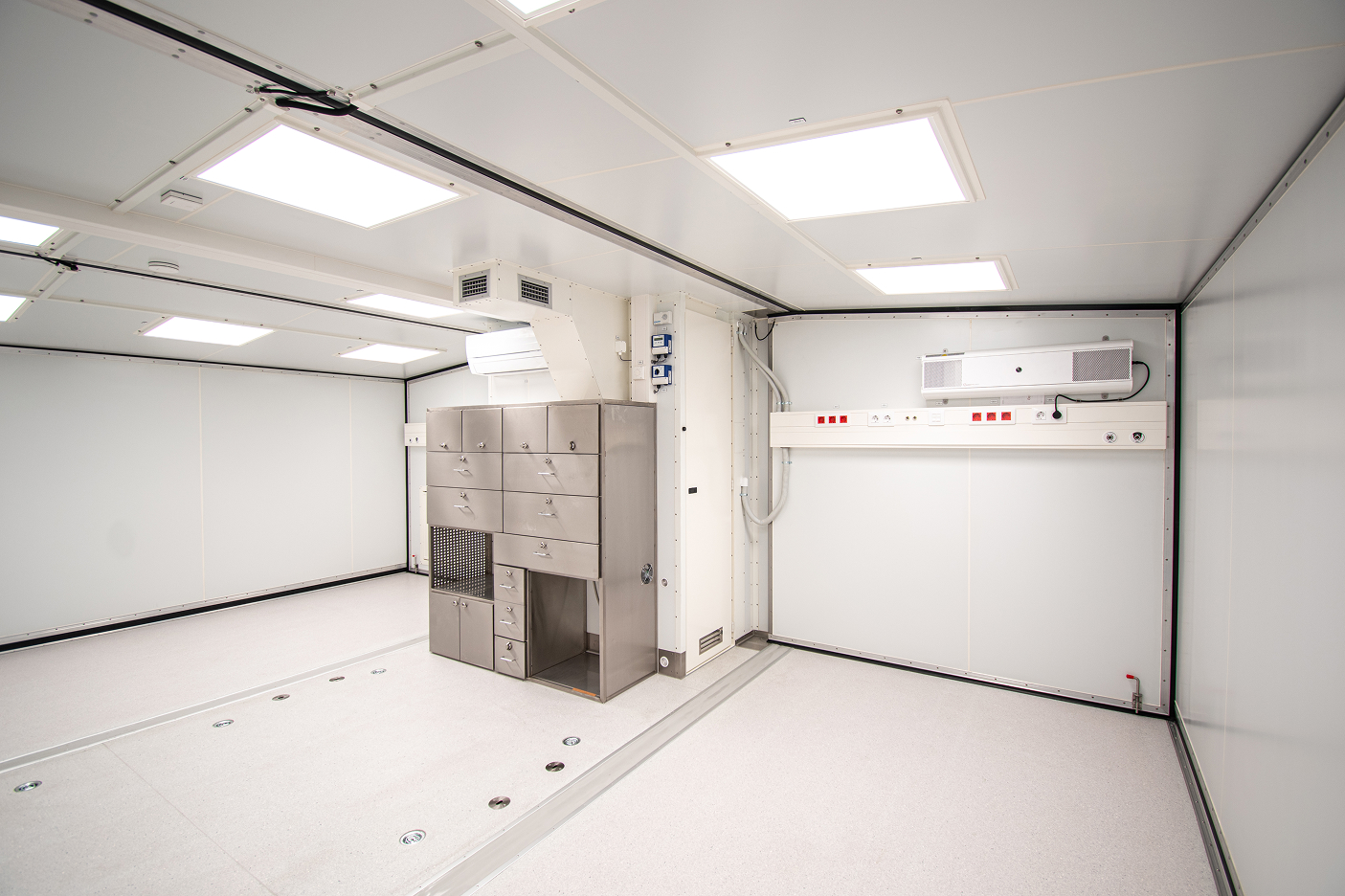

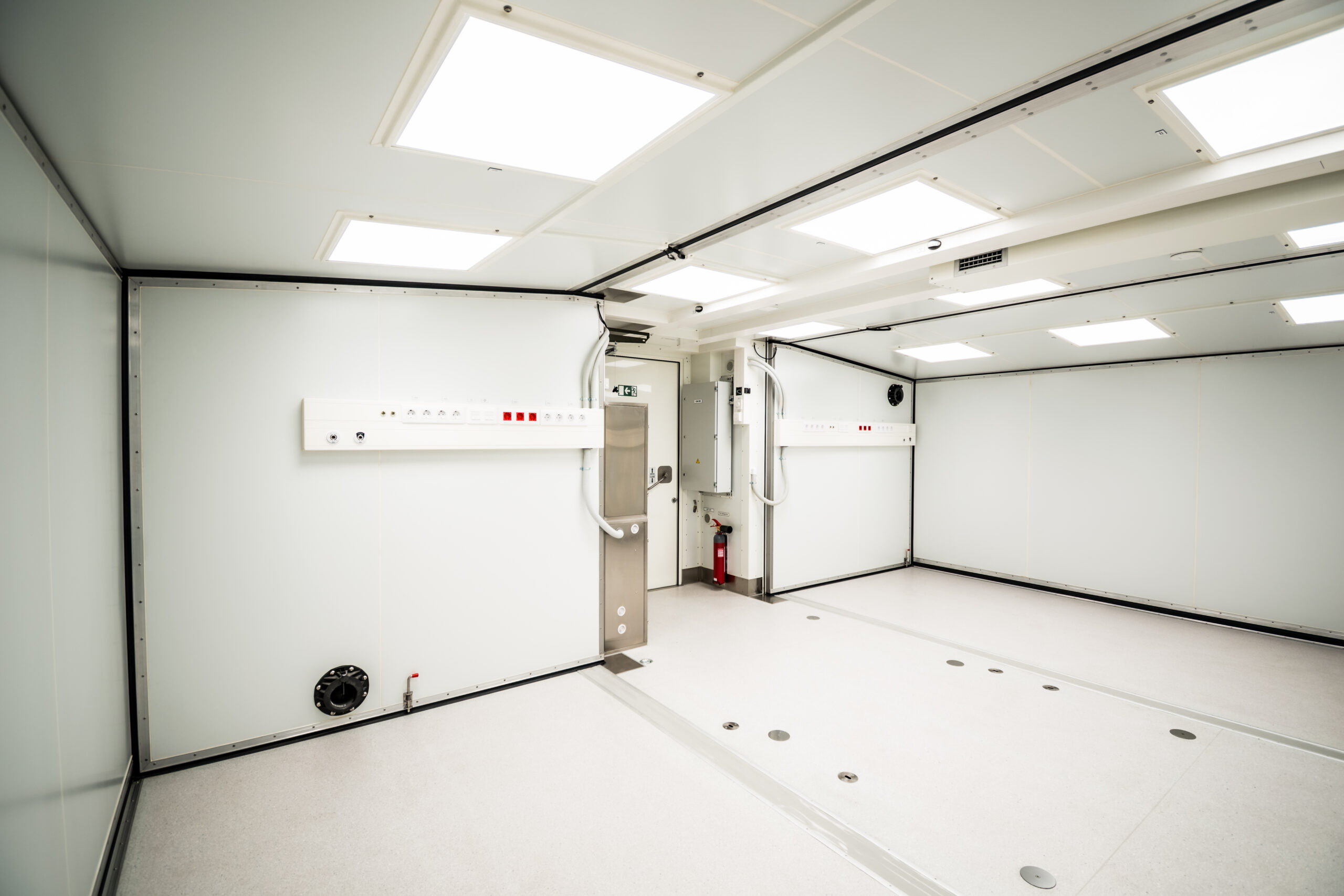

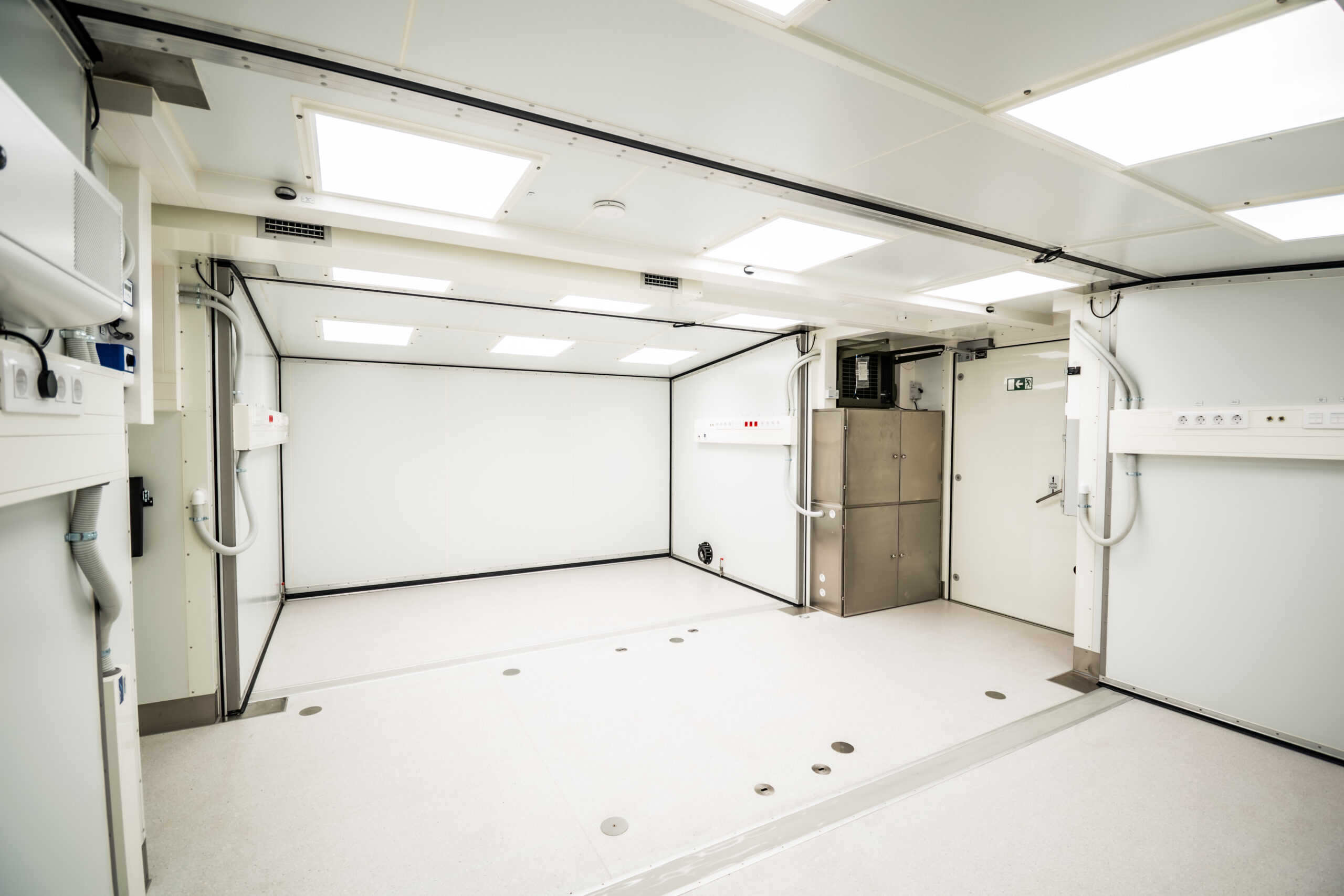

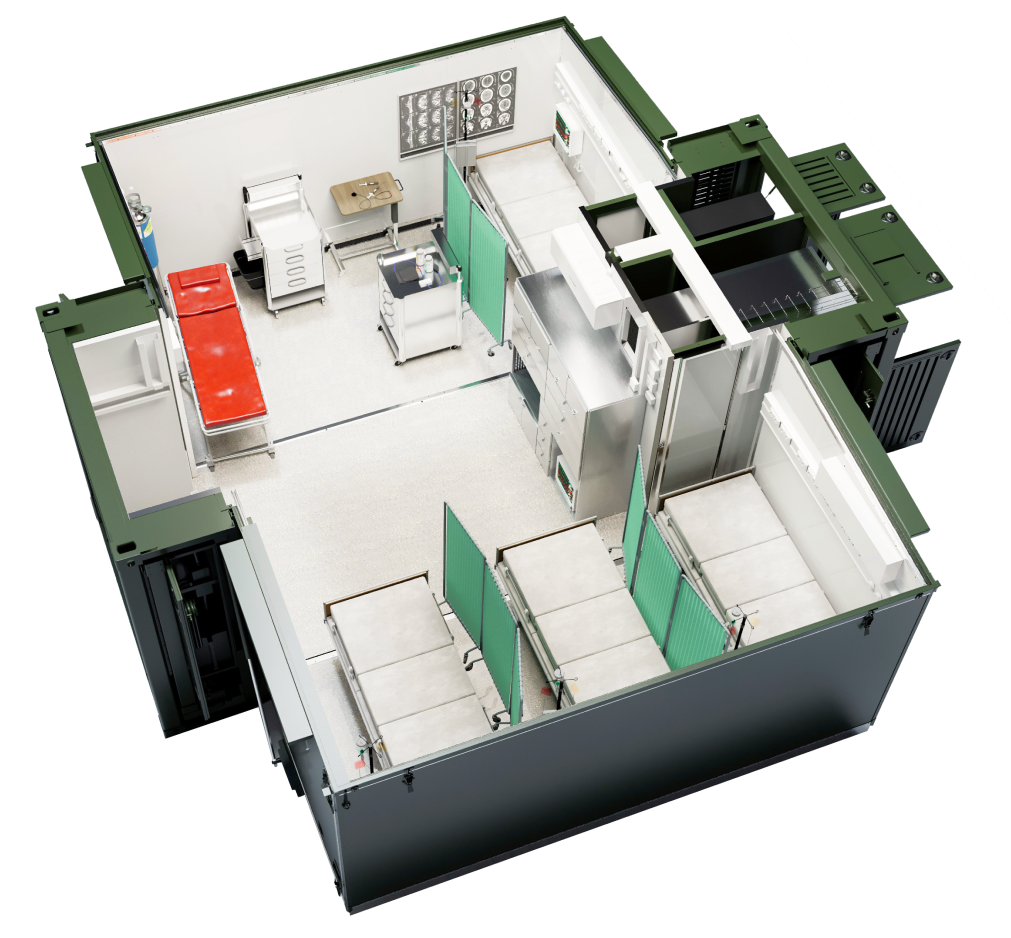

Medical-grade interior designed for clean, efficient workflows with integrated utilities and controlled environments

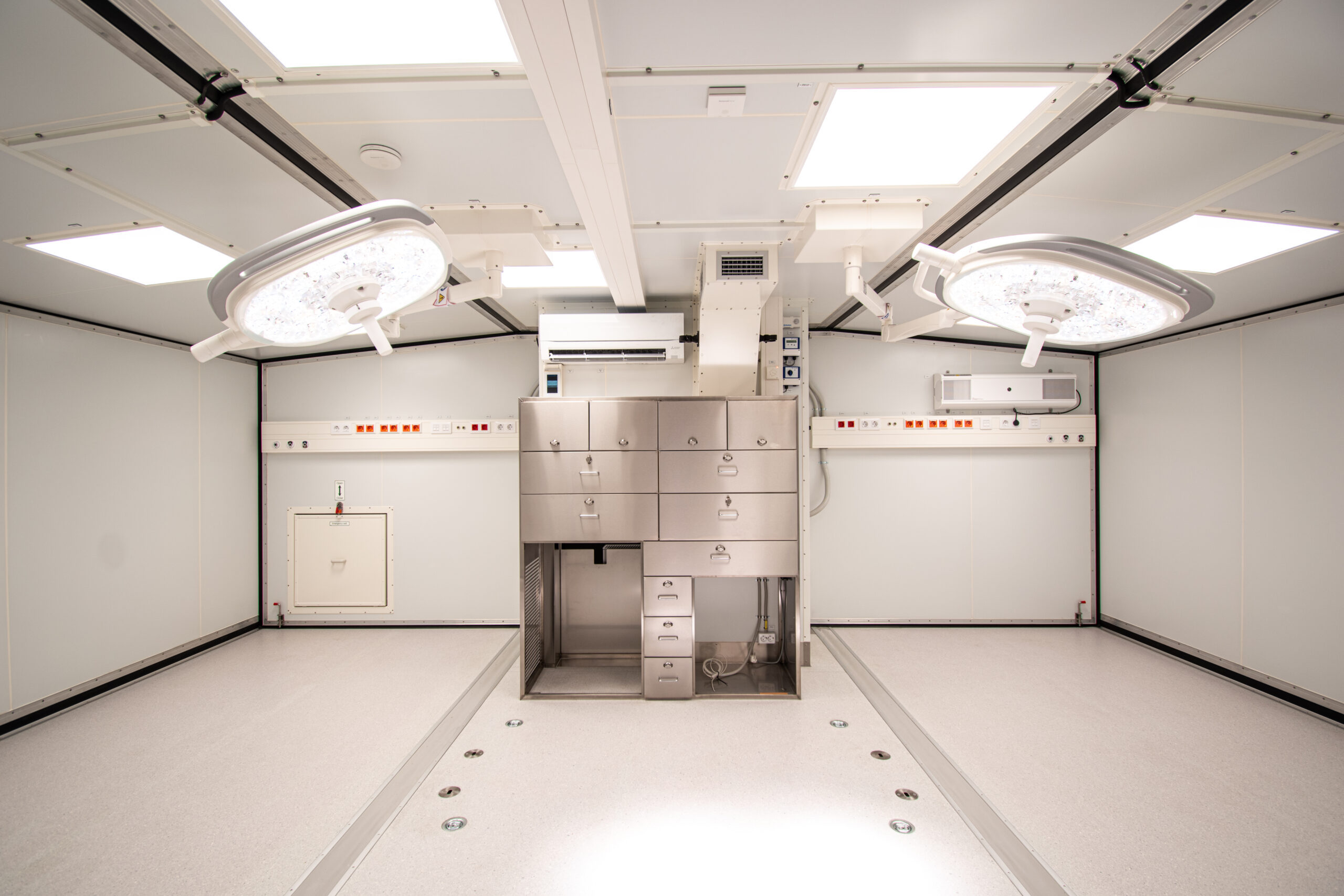

Supports multiple medical functions such as operating rooms, intensive care, diagnostics, and treatment modules
Flexible furniture, lighting, and power distribution allow easy adaptation to different medical tasks and layouts
Reliable interior systems enable continuous healthcare delivery in remote or emergency conditions

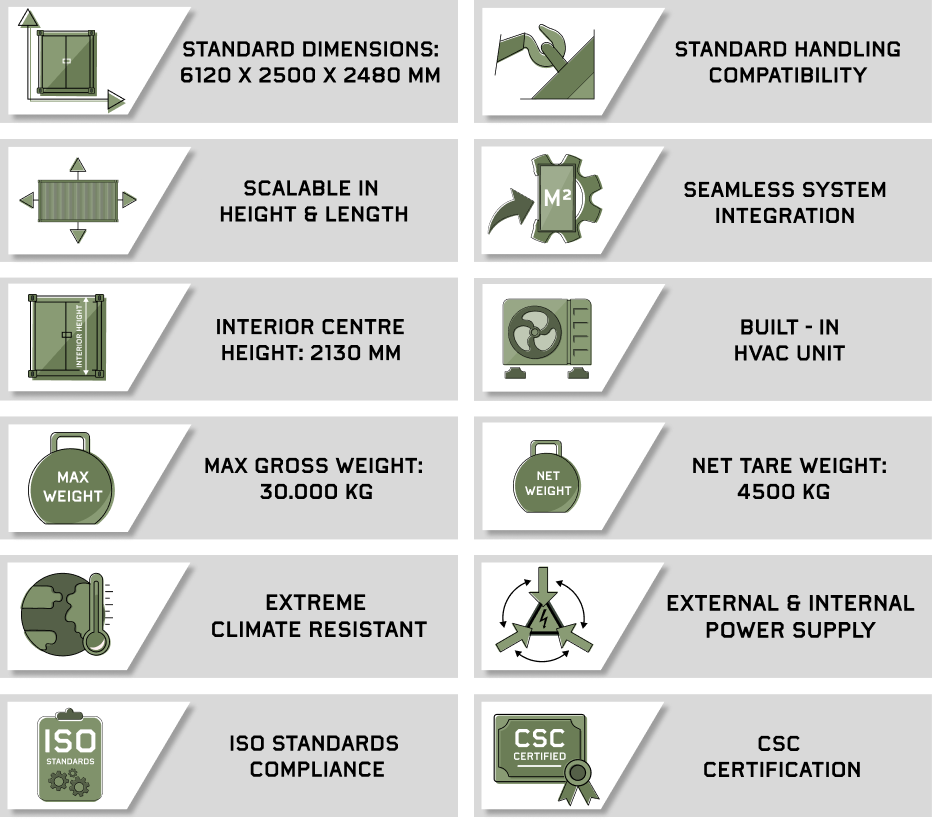

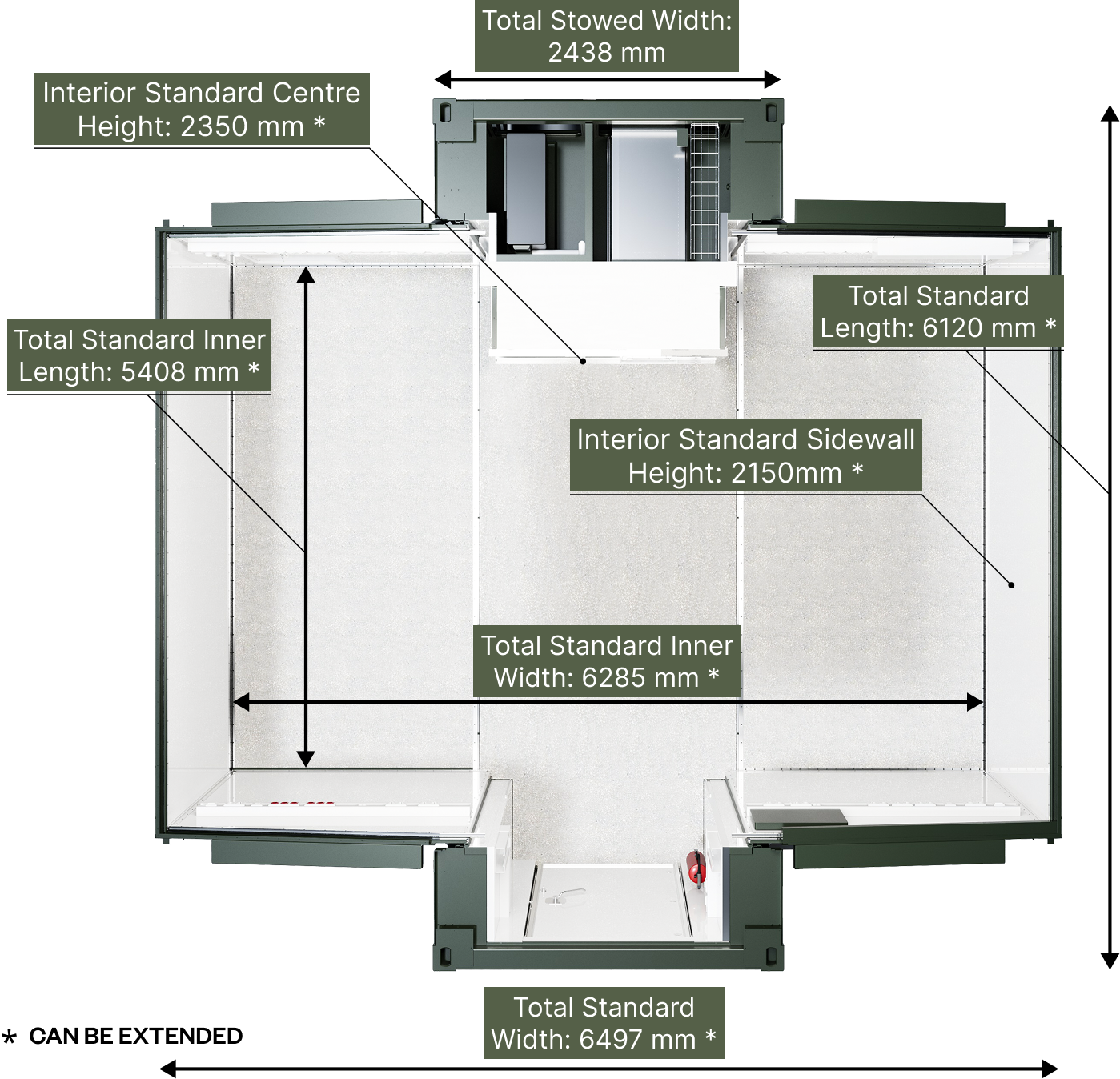

Specifications
The Mobile Hospital system delivers rapid medical deployment, efficient space use, and dependable performance in challenging environments. Built for operation in extreme climates, it offers practical interior height, integrated medical systems, and optimized transport weight for smooth mobility and fast setup. Its modular and scalable design supports a wide range of essential medical roles for both civilian and military missions, ensuring a reliable and adaptable treatment environment wherever readiness is required.
Features
The Mobile Hospital system is built with medical-grade materials and a reinforced modular structure suitable for field deployment. It features insulated panels, controlled interiors, sealed doors, integrated technical rooms, anti-slip flooring, power inlets, and LED lighting. Designed for demanding environments, it ensures durability, protection, and clinical performance in missions.
CSC Certified, CE marked equipment, NATO origin.
Standard ISO cargo container floor frame with forklift pockets.
Sandwich panels with 0.9 mm stainless steel sheets on both sides with 50mm EPS foam in the middle.
70-80mm of foam insulation in floor and roof.

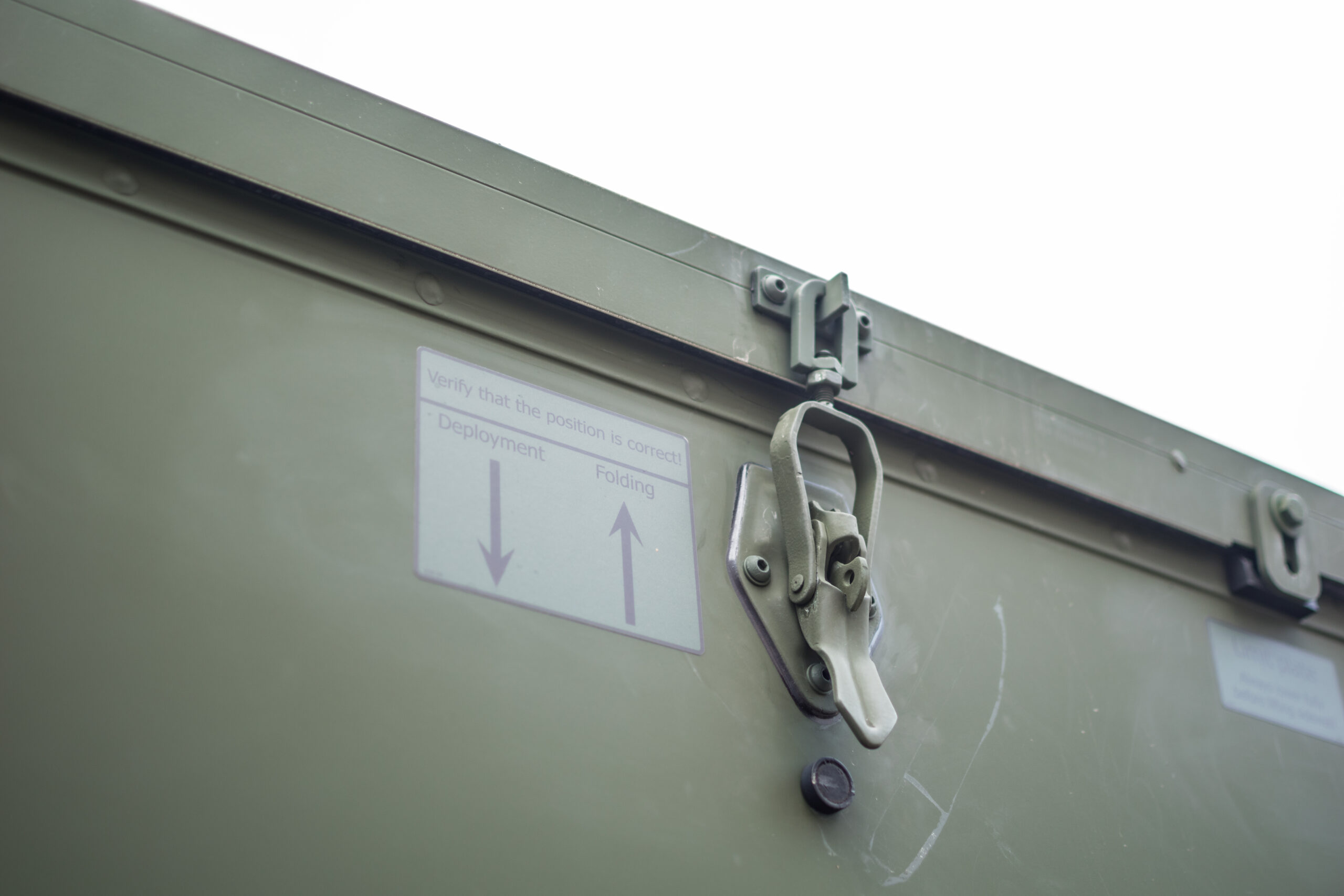

Hinge system with extruded aluminium profiles on top rail and end frames.
Heavy duty rubber gaskets.

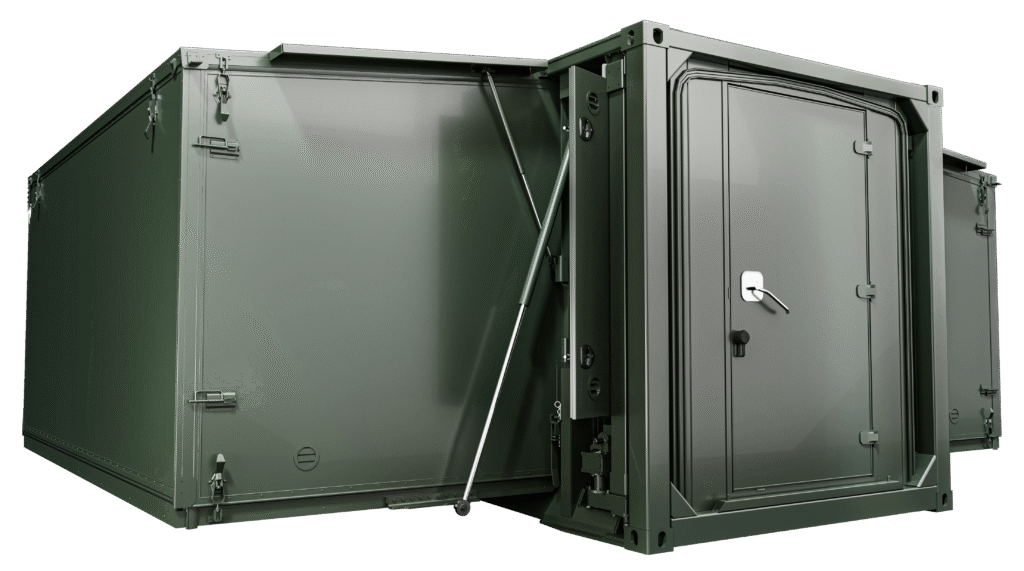

Gas spring and winch assisted ceiling and floor panel deployment for safe 2-person 20 minutes setup.
Standard insulated steel entrance door (950mm x 2000mm).
Technical room with external insulated (50mm) steel door (single or double) for easy access.
Standard anti slip PVC floor covering.
400V/230V 32A power inlet, power distribution board, power outlets inside.
Slim LED lamps in ceiling.
Options

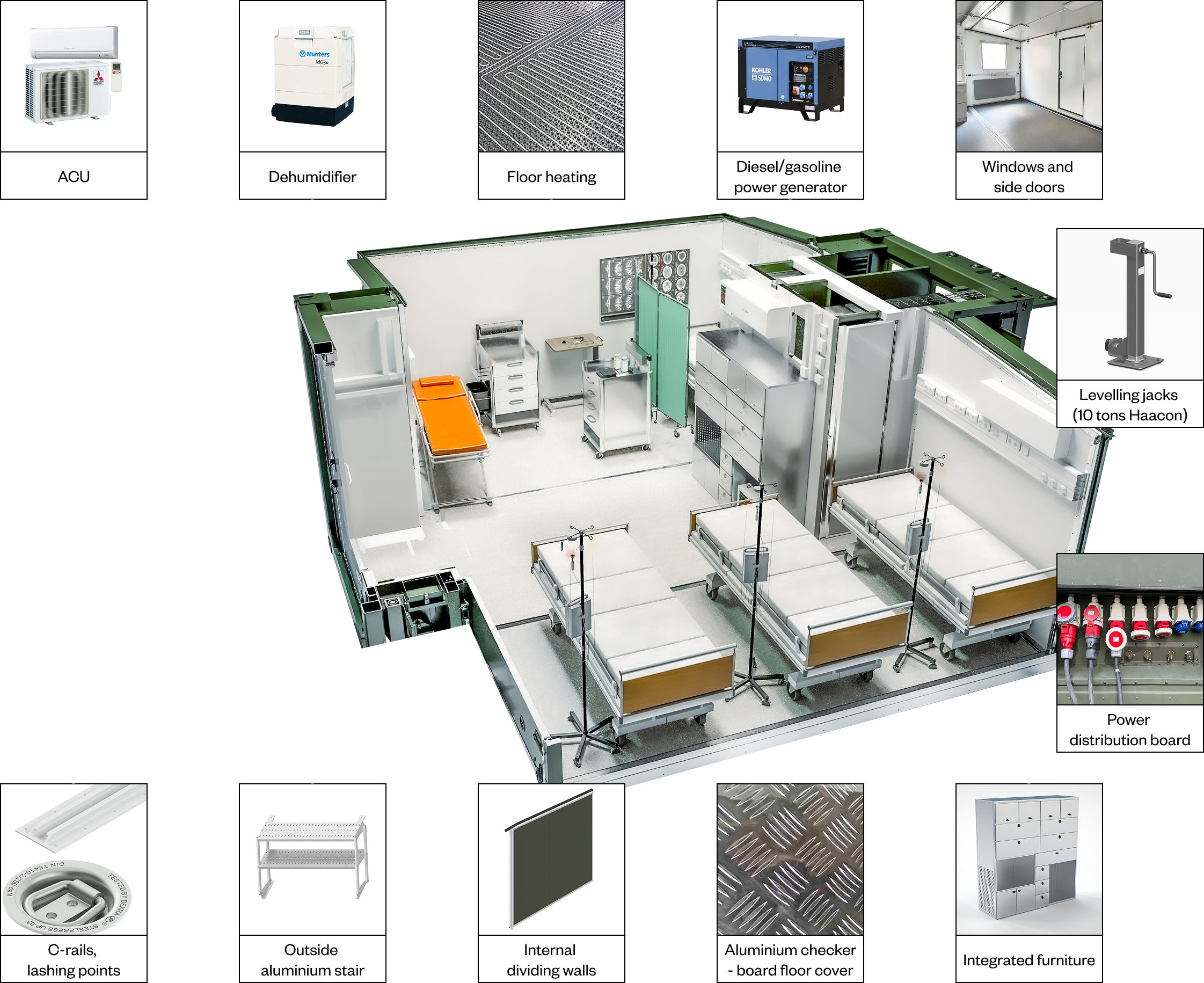

A range of optional components allows the Mobile Hospital system to be tailored for specific medical needs. Climate control upgrades, power solutions, and interior adaptations ensure flexibility for various missions. Options include air conditioning, heating, external access systems, medical furniture, lighting, and customizable layouts for enhanced flexibility and efficiency.
360° View
Rotate and zoom to examine every detail of its medical-grade structure and field-ready configuration. See how the unit is engineered for rapid deployment, sterile workflows, and seamless integration with essential treatment systems. Experience the reinforced panels, hygienic materials, and modular layouts that ensure reliable clinical performance in demanding environments.
Designed for military, humanitarian, and emergency response missions, the mobile hospital provides flexibility, stability, and full operational readiness — delivering a dependable medical workspace wherever fast setup and life-saving efficiency are required.
Gallery
Virtual Tour

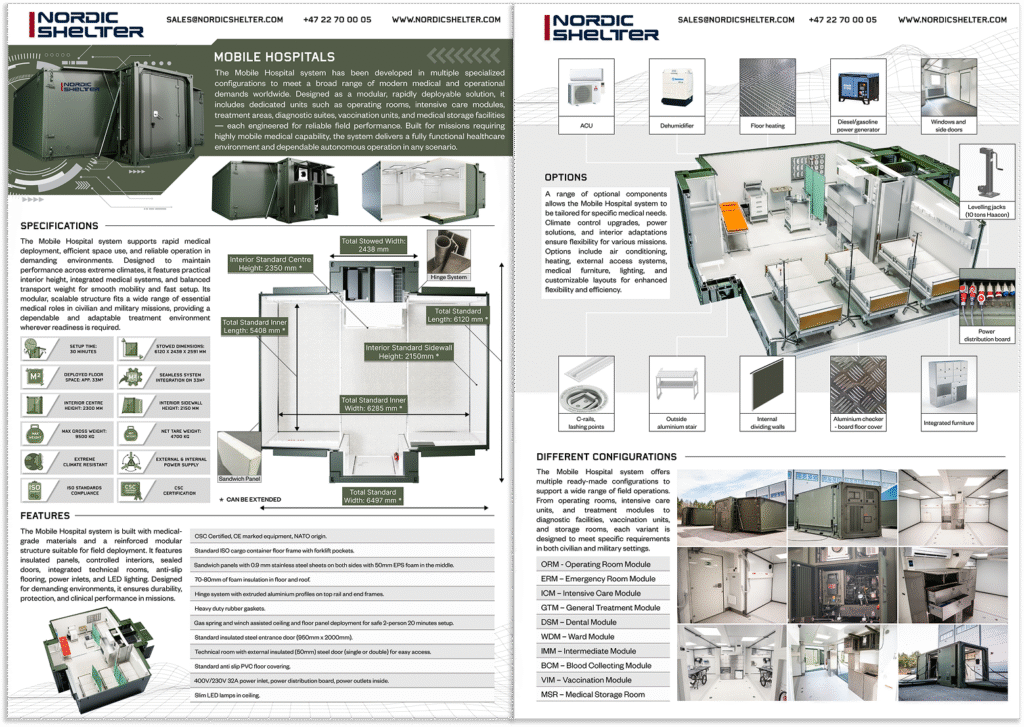

Download Datasheet
Download the datasheet to explore detailed specifications, dimensions, and configuration options. Learn how this rapidly deployable unit combines robust construction, advanced insulation, and integrated power systems to deliver high performance in extreme environments. The document provides insight into its engineering precision, setup process, and material quality, ensuring reliability wherever mobility and readiness are essential.
